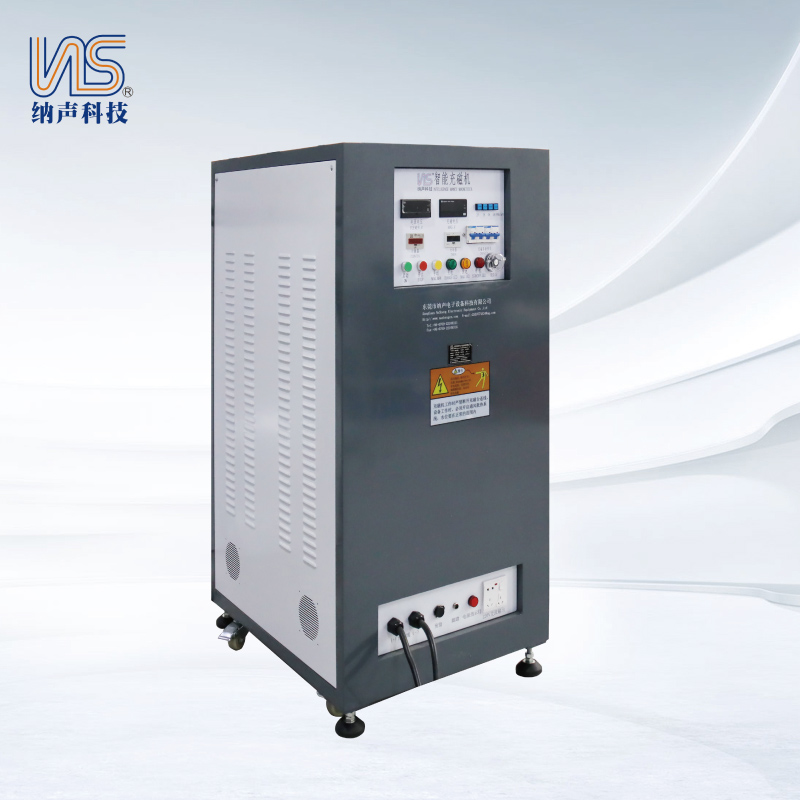

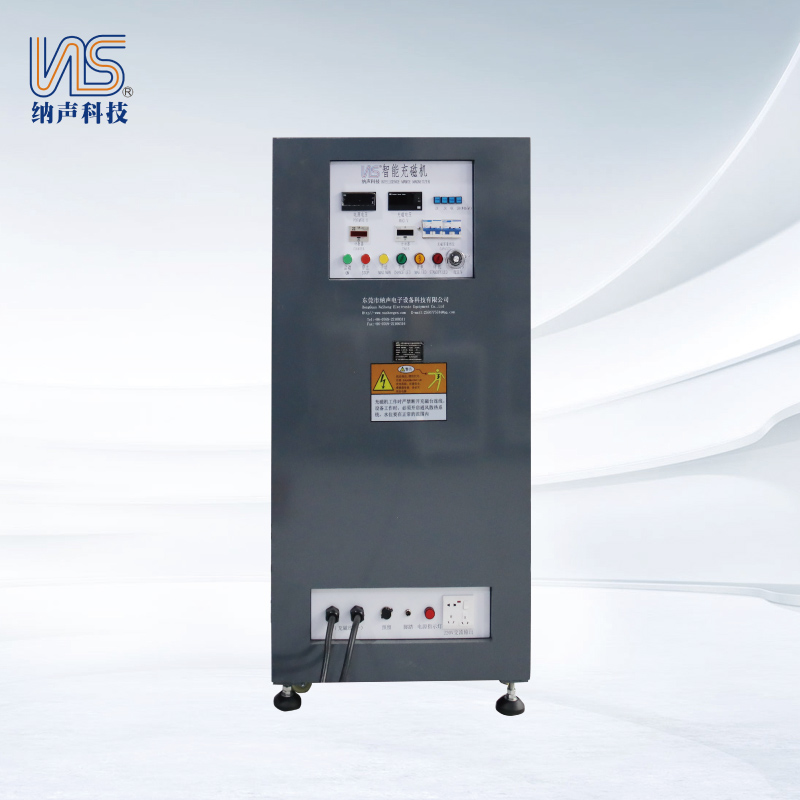

Special series for permanent magnet Dc motors NS.15~30

1. Adopt high-voltage pulse non-inductive capacitor and advanced control technology, and double display of magnetized voltage digital and pointer meter

2. The capacitance capacity can be switched, and the pointer meter is double-displayed.

3. Output pulse current display function

4. Optional demagnetization function.

Inquire Now Next Product

Description

model：NS-JS-1510，NS-JS-1520，NS-JS-1540，NS-J5-3010

Input power：AC220V-10A、AC380V-20A，AC220V-10A、AC380V-20A，AC220V-35A、AC380V-40A，AC220V-140A、AC380V-120A

Magnetizing voltage:DC50V~1500V,DC50V~1500V,DC50V~1500V,DC50V~1500V

Output current:15K~35KA,15K~35KA,15K~35KA,15K~35KA

Capacitance:1000UF,2000UF,4000UF,1000UF

Discharge energy:1125J,3000J,6000J,4200J

Charging time:5S,2S,3S,4S

Dimensions:520*1000*10200mm,520*1000*10200mm,520*1000*10200mm,520*1000*10200mm

Weight：approx. 100kg, approx. 100kg, approx. 100kg, approx. 500kg

Remark：

1. The above conventional models accept special customization! (The product is constantly innovating, if there is any change, the actual product shall prevail)

2. Optional "demagnetization" function (suffix D), dual output function (suffix B)
