Home >> Products >> Magnetic material magnetization technology and automation >> Magnetizer (magnetizing power supply) series >> High performance magnetizer NS.15

  • High performance magnetizer NS.15

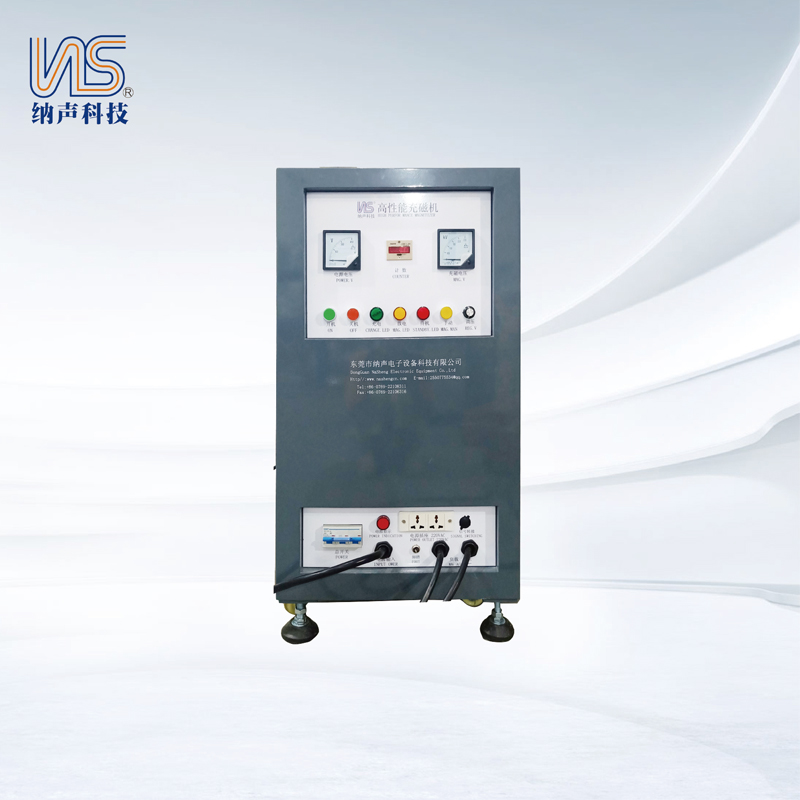

High performance magnetizer NS.15

1. Using energy transfer technology, the heat generation is small, the power consumption is low, under the same power working conditions, the heat generation is reduced by 60% compared with other magnetizers, and the power consumption is generally saved;

2. Automatic discharge function when power off or power off, automatic overvoltage, overcurrent and other protection functions, the equipment is safe and reliable;

3. The power-on compensation technology is adopted, which reduces the impact on the power grid, and the power-on speed is fast and the efficiency is high;

4. 24 hours of continuous work without shutdown, long life, low failure, easy maintenance;


Share

model:NS.1580VA,NS.15120VA,NS-15160VA

input power:AC220V-55A、AC380V-50A,AC220V-55A、AC380V-50A,AC220V-55A、AC380V-50A

Magnetizing volta ge:DC1500V/DC0V~1500V

Output current:15K~35KA

Capacitance:8000UF,12000UF,16000UF

Discharge energy:4000J,6000J,8000J

Charging time:2S,2.5S,3S

Main control element:SCR

Dimensions:520*900*1000mm,520*1000*1200mm

weight:Approx. 100kg

Remark:

1. The above conventional models accept special customization! (The product is constantly innovating, if there is any change, the actual product shall prevail)

2. Optional "demagnetization" function (suffix D), dual output function (suffix B)
