Application industry
Drying of UV coating, protective film of printed circuit, IC card, IC label coating, stripping of UV tape of DVD medium coating, UV bonding, electronic manufacturing of digital household appliances, PCB coating and chip bonding, assembly of mobile phone camera, curing of various PVC, plastic sheets, computer keyboards, mobile phone buttons, drying and curing of micro-speakers, speakers, receivers, earphones and earplugs, and electro-acoustic industry.

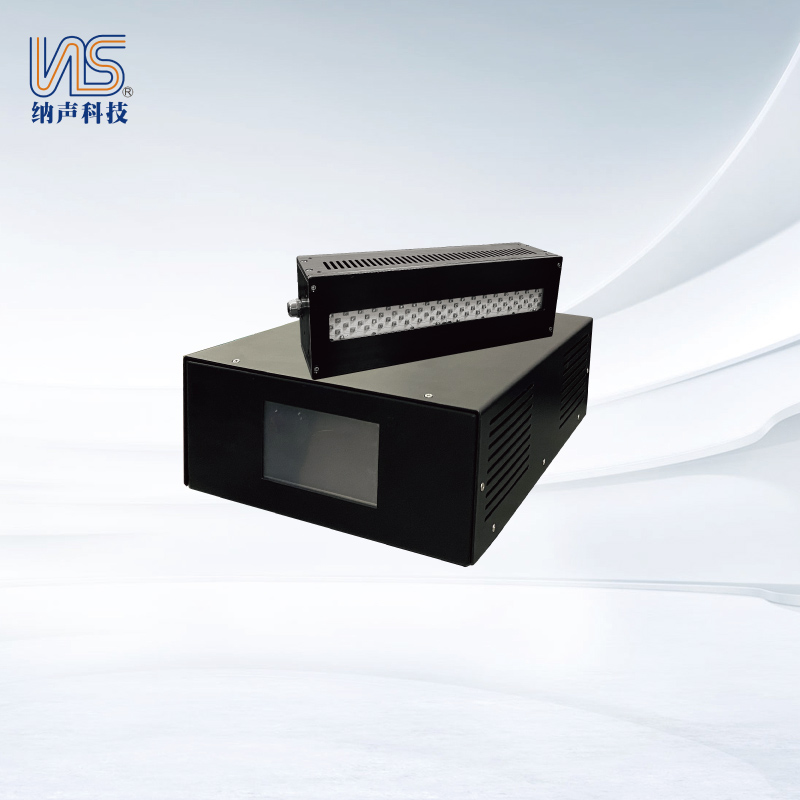

| Technical Parameter | |||
| 365/395/405mm irradiation head | controller | ||
| light-emitting area | 240*30mm | voltage | AC220V |
| Illumination distance | 5-50 | Control mode | Touch/pedal/／PLC |
| Optical power density (w/cm) | 0-15 | Adjustable range of irradiation power | 10%-100% adjustable |
| Heat dissipation mode | Air cooling/water cooling (demand selection) | Irradiation mode (manual) | By pressing a button/pedal |
| Cable length | 2M, 5M optional | Illumination mode (automatic) | THE IRRADIATION TIME IS SET TO BE 0.1-999.9S |
| Estimated life of light source | 25000S | Communication control | I/0 interface/remote control with host computer |
| Use humidity/humidity range | -10 | Operating environment tempera ture/humidity | 0°C-45°C (no freezing. non-condensing) |
| input voltage | 220VAC 50Hz | Preserve ambient temperature/humidity | (-10°C-60°C/ 30-85%RH non-condensing) |
