Application industry
Drying of uV coating, protective film of printed circuit, iC card, ic label coating, stripping of Uvtape of DVD medium coating, UV bonding, electronic manufacturing of digital householdappliances, PcB coating and chip bonding, assembly of mobile phone camera, curing ofvarious Pvc, plastic sheets, computer keyboards, mobile phone buttons, drying and curing ofmicro-speakers, speakers, receivers, earphones and earplugs, and electro-acoustic industry.
| Technical Parameter | |||

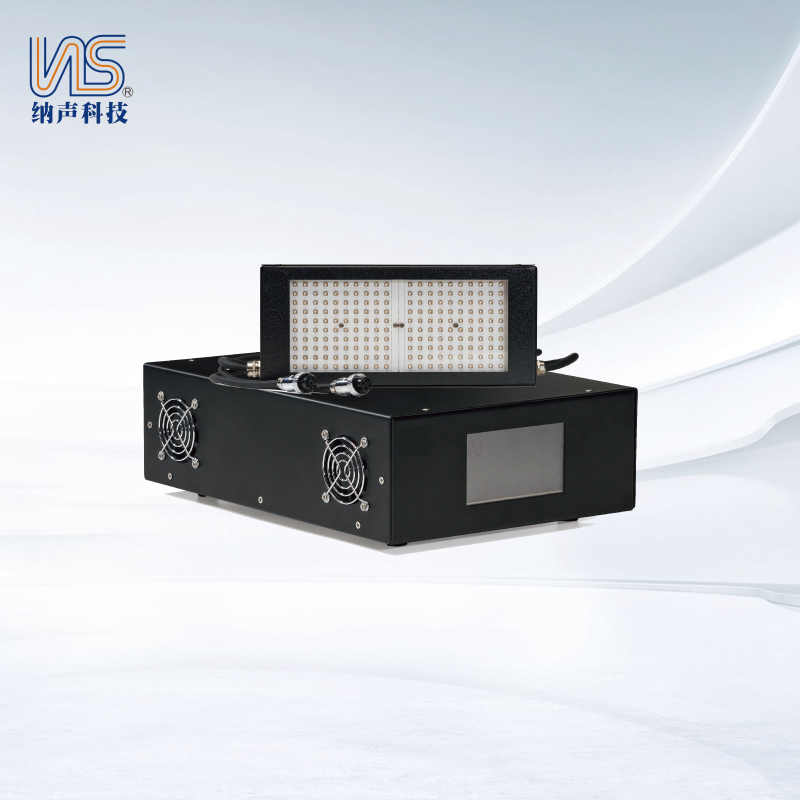

| 365/395/405mm irradiation head | controller | ||
| light-emitting area | 200*100mm | voltage | AC220V |
| Illumination distance | 5-50 | Control mode | Touch/pedal/／PLC |
| Optical power density (w/cm) | 0-15 | Adjustable range of irradiation power | 10%-100% adjustable |
| Heat dissipation mode | Air cooling/water cooling (demand selection) | Irradiation mode (manual) | By pressing a button/pedal |
| Cable length | 2M, 5M optional | Illumination mode (automatic) | THE IRRADIATION TIME IS SET TO BE 0.1-999.9S |
| Estimated life of light source | 25000S | Communication control | I/0 interface/remote control with host computer |
| Use humidity/humidity range | -10 | Operating environment tempera ture/humidity | 0°C-45°C (no freezing. non-condensing) |
| input voltage | 220VAC 50Hz | Preserve ambient temperature/humidity | (-10°C-60°C/ 30-85%RH non-condensing) |
| outline dimension | 270*200*107.5mm | outline dimension | 340*243*101.5mm |
