Application industry
Curing the side of the touch screen, FPC reinforcement, gluing and curing the wire of the flat
Cable connector, line gluing process assembly line operation, and UV fixing of the micro motor.
| Technical Parameter | |||

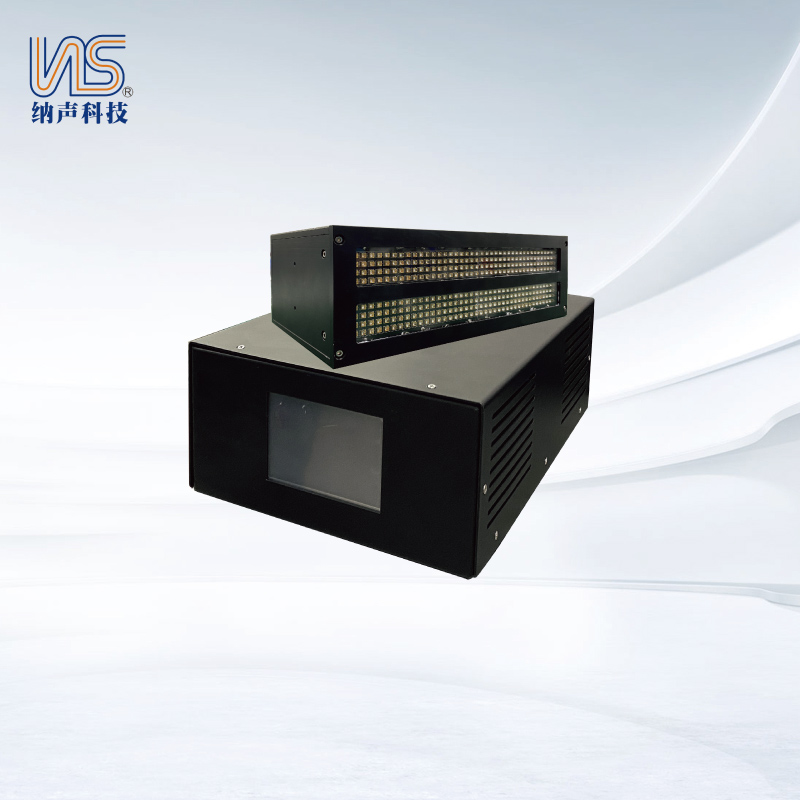

| 365/395/405mm irradiation head | controller | ||
| light-emitting area | 240*30*30mm | voltage | AC220V |
| Illumination distance | 5-50 | Control mode | Touch/pedal/／PLC |
| Optical power density (w/cm) | 0-15 | Adjustable range of irradiation power | 10%-100% adjustable |
| Heat dissipation mode | Air cooling/water cooling (demand selection) | Irradiation mode (manual) | By pressing a button/pedal |
| Cable length | 2M, 5M optional | Illumination mode (automatic) | THE IRRADIATION TIME IS SET TO BE 0.1-999.9S |
| Estimated life of light source | 25000S | Communication control | I/0 interface/remote control with host computer |
| Use humidity/humidity range | -10 | Operating environment tempera ture/humidity | 0°C-45°C (no freezing. non-condensing) |
| input voltage | 220VAC 50Hz | Preserve ambient temperature/humidity | (-10°C-60°C/ 30-85%RH non-condensing) |
| outline dimension | 270*240*150mm | outline dimension | 340*243*101.5mm |
