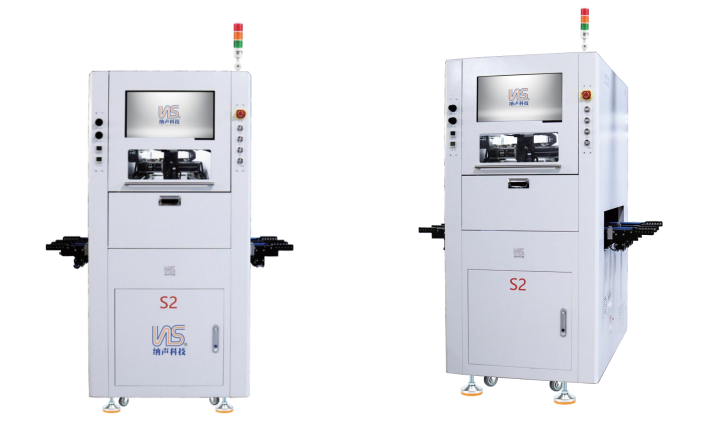

Panoramic visual visual dispenser

Panoramic vision dispenser is an advanced automation equipment. The panoramic vision dispenser combines panoramic CCD vision technology and a precision control system, which is able to identify the position and shape of the target object, and automatically adjust the flow of the dispensing head and glue, so as to achieve accurate dispensing of the target object. It is able to complete a large number of dispensing tasks in a short period of time, which greatly improves production efficiency.

Panoramic vision dispensing machine working principle:

The working principle of the panoramic vision dispenser mainly relies on the synergy of the vision system and the control system. The vision system consists of a camera, a light source, a frame grabber, and image processing software, which work together to obtain the location information of the product. The control system controls the actuator of the dispenser for precise dispensing operations according to the instructions provided by the vision system.

Panoramic vision dispenser vision system composition:

1. Camera: responsible for capturing images of the product, usually installed in the appropriate position of the dispenser to ensure that the area that needs to be dispensed can be clearly captured.

2. Light source: Provide enough light for the camera to ensure the quality of the image. The brightness and angle of the light source can be adjusted as needed to eliminate shadows and reflections and improve image clarity.

3. Image grabber: converts the images captured by the camera into digital signals, which are then transmitted to the image processing software for further processing.

4. Image processing software: process the collected image signal and extract the position information of the product. Through image processing techniques, such as edge detection and feature recognition, the software is able to accurately identify the location that needs to be dispensed and translate this information into instructions that the machine can understand.

The core advantages of panoramic vision dispensing machine vision:

1. High precision: The panoramic vision system has high precision and high stability, and can maintain a stable recognition effect even in high-speed movement or complex environments.

2. High efficiency: The panoramic vision dispensing machine can complete a large number of dispensing tasks in a short time, which greatly improves the production efficiency.

3. Reduce labor intensity: Due to the use of automated production methods, the labor intensity of workers is reduced.

4. Wide application: Panoramic vision dispensing machine is widely used in electronics, automotive, medical, aviation and other fields, meeting the needs of different industries for high-precision dispensing.

Introduction to the technical parameters of panoramic visual dispensing machine:

Product model: PS-SJ4060S panoramic visual dispenser

Recognition range: 40*60cm

Number of cameras: 2

Camera pixels: 1200w pixels

Movement speed: 500m/s (customizable)

Repeatability: ±0.01mm

Positioning method: CCD visual capture positioning

Dispensing methods: point, line, surface, circle, arc, glue, glue injection or any irregular curve

Panoramic vision dispensing machine can be used for yellow glue, uv glue, latex, anaerobic glue, sealant, fan water, epoxy resin ab glue, polyurethane PU glue, ab silicone, paint, ink dispensing, can be used in, electronics, electrical appliances, automobiles, new energy, LED lighting, handicrafts, jewelry and other industries dotting.
