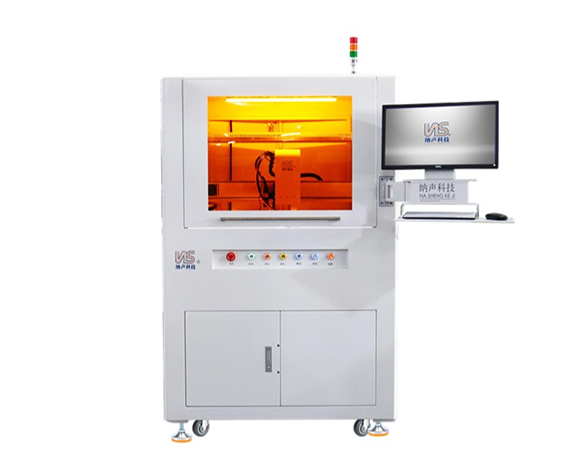

Automatic alignment dispenser

The automatic alignment dispenser is an automated dispensing equipment that integrates machine vision technology, which uses advanced image processing algorithms to achieve high-precision and high-efficiency dispensing operations in industrial production. The following is a detailed introduction to the automatic alignment dispenser:

1. Principles and characteristics

Principle: The automatic alignment dispenser introduces machine vision inspection into the dispensing position measurement process of the dispensing machine. The system is equipped with a high-speed industrial camera that acquires product images and transmits the image data to the image processing system. The image processing system performs preprocessing, coordinate calculation, and related size measurement for each image, and transmits the information to the dispensing system to achieve dispensing guidance.

Peculiarity:

High precision: Through machine vision technology, the dispensing position can be accurately identified and located, and high-precision dispensing operations can be realized.

High efficiency: Automated operation reduces manual intervention and improves production efficiency.

Flexibility: Suitable for a wide range of products and dispensing needs, parameters and procedures can be adjusted to suit different production scenarios.

2.application field

Automatic alignment dispensers are widely used in various fields that require fluid dispensing, including but not limited to:

Electronics industry: such as mobile phones, computer shells, CD players, printers, PC boards, LCD, LED, DVD, digital cameras, switches, connectors, relays, radiators and other products dispensing, bonding, pouring, coating and other processes.

Other industrial fields: such as medical devices, clocks, toys and other products that require liquid dispensing.

3. Technical parameters

The technical parameters of the automatic alignment dispenser may vary from model to model and brand, but generally include the following aspects:

Machine size: Indicates the size of the space occupied by the dispenser.

Travel range: Indicates how much space the dispenser can run in.

Dispensing valve body: Different valve bodies are suitable for different glues, and the corresponding valve bodies need to be selected according to the actual use of glue.

Minimum dispensing volume: represents the dispensing accuracy of the dispensing machine.

Dispensing frequency: Indicates the speed of dispensing.

4. the market situation

At present, there are a variety of brands and models of automatic alignment dispensing machines on the market, and the price ranges from thousands of yuan to hundreds of thousands of yuan. The price depends on the performance, configuration, brand, and market supply and demand of the equipment. When choosing an automatic alignment dispenser, it is recommended to consider the actual needs, budget, and equipment performance.

Use and maintenance

Use: Before using the automatic alignment dispensing machine, you should carefully read the equipment manual to understand the operation methods and precautions of the equipment. At the same time, the equipment needs to be debugged and calibrated to ensure the accuracy and precision of the dispensing position.

Maintenance: Regularly clean and maintain the equipment, check whether the various parts of the equipment are operating normally, and replace the damaged parts in time. In addition, it is also necessary to pay attention to the moisture, dust and corrosion protection of the equipment to prolong the service life of the equipment.

To sum up, the automatic alignment dispenser is an efficient and accurate automatic dispensing equipment, which has a wide range of application prospects in industrial production.
