1. The maximum output pressure and sealing degree decrease with the decrease of viscosity, but increase with the increase of viscosity.
2. The output accuracy is one revolution, and depends on the viscosity of the material.
3. The materials of rotor and stator are different according to the application fluid. Please consult the manufacturer for details.

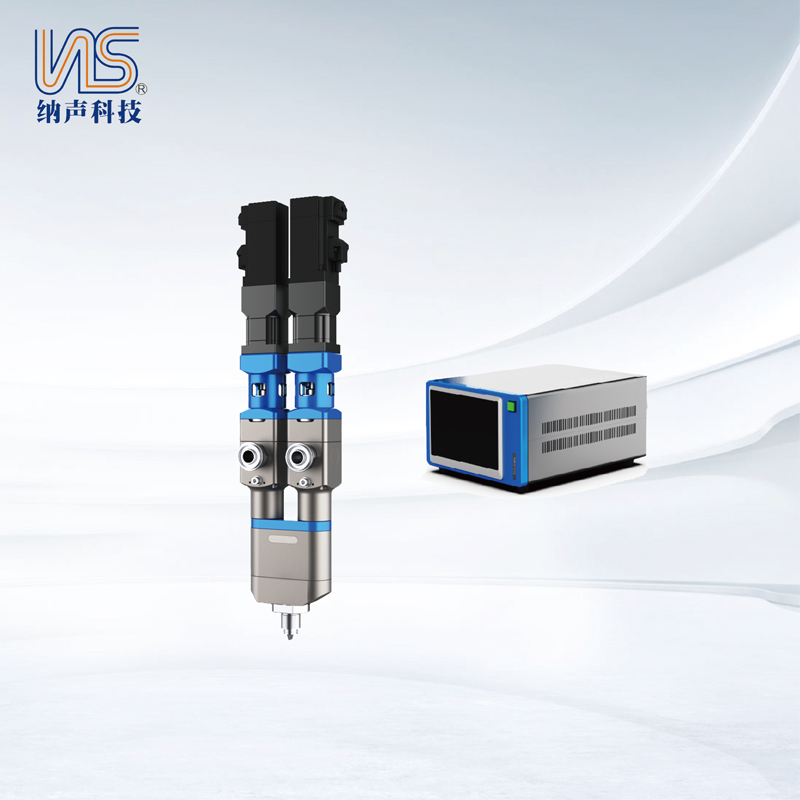

model：NS-LGF HS350，NS-LGF HS1000，NS-LGF HS2000
type：Medium flow type，Medium-high flow type，Large flow type
Input pressure：0~6 bar
Maximum input pressure：20 bar
Self-sealing ability：≈2 bar
Fluid viscosity：From water to paste, it can be used for granular fillers
traffic：MAX：31.5 ml/min，MAX：90 ml/min，MAX：180 ml/min
Adapt the rotor model：DM350，DM1000，DM2000
Minimum dispensing amount：0.01ml，0.02ml，0.04ml
Output accuracy：±1 %
Rotor material：SUS304/SUS316L/(Zirconia ceramics)
Stator material：FFKM/PU/EPDM/NBR
Material of liquid receiving part：SUS304/POM/PTFE/PEEK/AL
Feed por：G1/2 thread ·KF16
Discharge port：G1/4 thread, high pressure needle
ambient temperature：10~40 ℃
Dispensing consistency：＞99%
