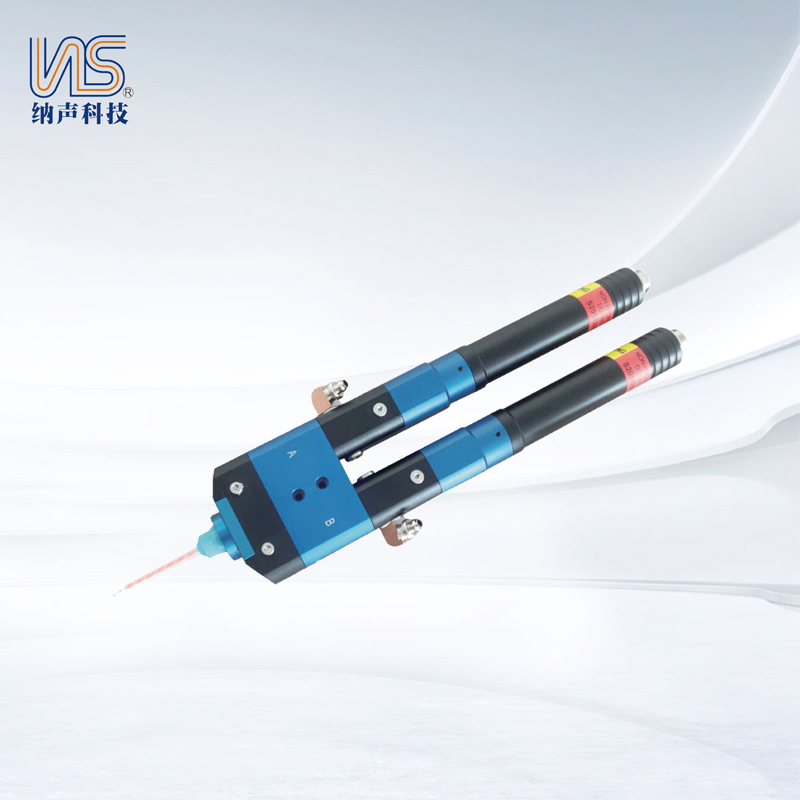

Two-component mixing and dispensing system: the volumetric output of two-component materials is truly realized. The minimum dosage of two-component liquid and paste is accurately mixed and dosed. Through the target control of one-component materials, the mixing ratio is set to two decimal places. No matter what the viscosity of the material is, it can realize clean and reliable material transportation.
| Product parameter | ||||||

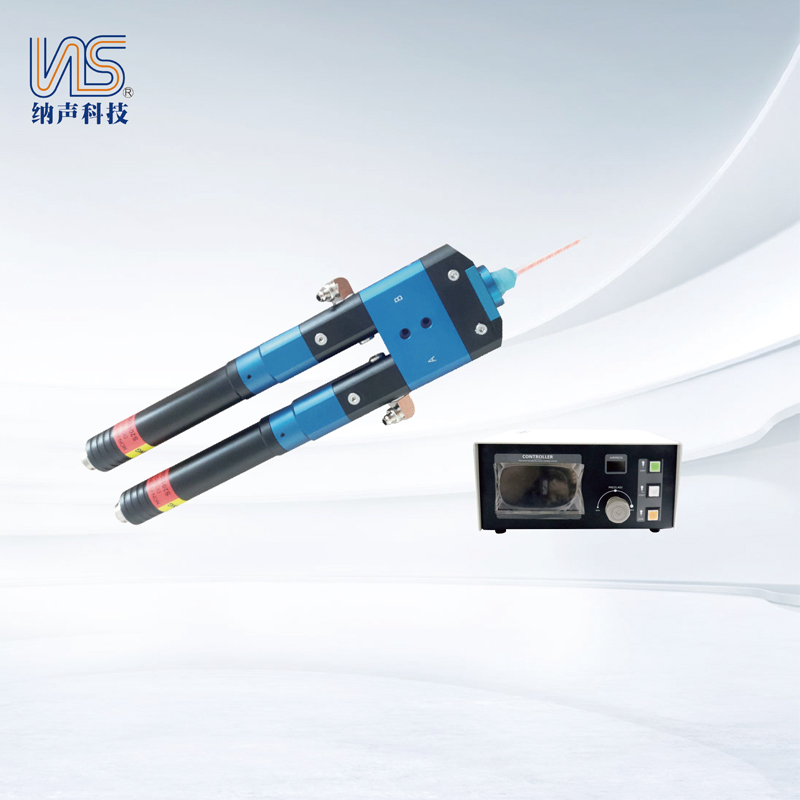

| product model | Two-component screw valve | product model | Two-component screw valve controller | |||
| precision | 士2% | monitor | 4.3 "touch screen | |||
| repeatability | 士1% | Control quantity | 1 (Customizable: for example, different controllers such as one control four and one control eight. | |||
| Flow per revolution | 0.6mL/min≤μ≤7.2mL/min (see selected model) | pilot signal | Switch signal | |||
| Conveyance per lap | 0.06mL/revolution | Power Supply | AC110-250Vy50/60HZ | |||
| Medium viscosity | ≤1000000cps | ambient temperature | 10-40°C | |||
| Medium pressure | ≤0.6MPa | Control screw valve portV | Flow per revolution | |||
| medium temperature | ≤80℃ | Device online port | Two-core aviation plug (receiving switch signal) | |||
| Operating voltage | Phase AC 220V ± 5%, 50 ± 2HZ | Firing pin/nozzle material | Superhard gold | |||
| outline dimension | 253(L)mmx33 (中)mm | outline dimension | 250()*220(D)*125(H)约3.4 kg~3.6kg | |||
