1. The maximum output pressure and sealing degree decrease with the decrease of viscosity, but increase with the increase of viscosity.
2. The output accuracy is one revolution, and depends on the viscosity of the material.
3. The materials of rotor and stator are different according to the application fluid. Please consult the manufacturer for details.

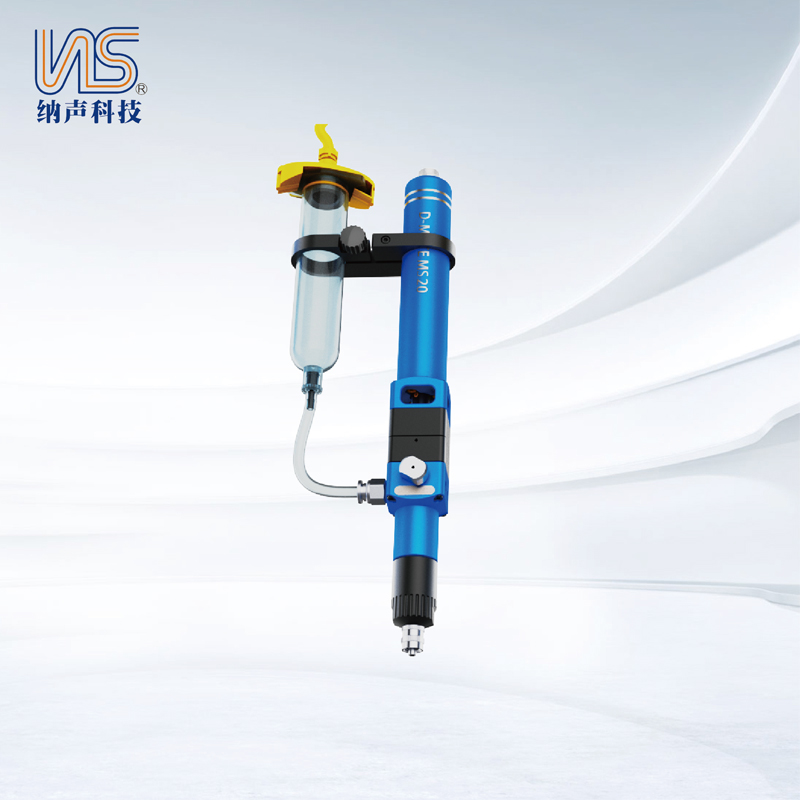

| Serial: | NS-LGF MS08, NS-LGF MS20 ,NS-LGF MS65 ,NS-LGF MS200 |
| Type: | Micro type, Small flow type, Multi-type type, Conventional type |
| Input pressure: | 0~6 bar |
| Maximum input pressure: | 20 bar |
| Self-sealing capacity: | ≈2 bar |
| Fluid viscosity: | from water to paste, can be applied to particle-containing fillers |
| Flow rate: MAX: | 0.72ml/min, MAX: 1.8ml/min, MAX: 5.8ml/min, MAX: 18ml/min |
| Compatible stator and rotor models: | DM08, DM20, DM65, DM200 |
| Minimum dispensing volume: | 0.001ml, 0.002ml, 0.004ml, 0.01ml |
| Output accuracy: | ±1 % |
| Rotor material: | SUS304/SUS316L/Zirconia ceramics |
| Stator material: | FFKM/PU/EPDM/NBR |
| Wetted part material: | SUS304/POM/PTFE/PEEK/AL |
| Feeding port: | Φ6mm material barrel · G1/8 thread |
| Outfeed port： | Luer fitting |
| Ambient temperature: | 10~40 °C |
| Dispensing consistency: | >99% |
