1. The maximum output pressure and sealing degree decrease with the decrease of viscosity, but increase with the increase of viscosity.
2. The output accuracy is one revolution, and depends on the viscosity of the material.
3. The materials of rotor and stator are different according to the application fluid. Please consult the manufacturer for details.

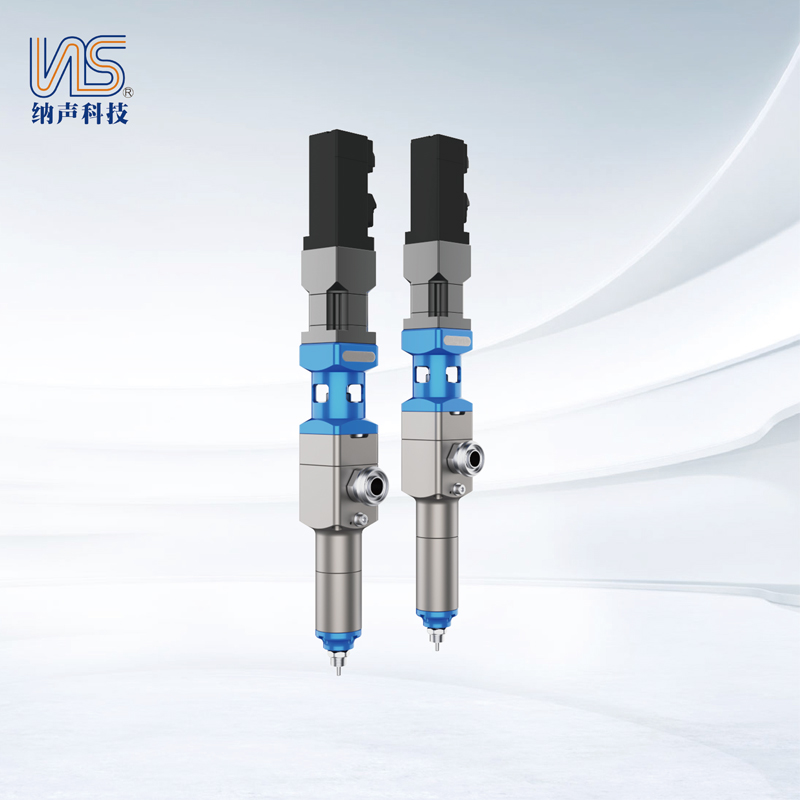

| Model: | NS-LGF HS350, NS-LGF HS1000, NS-LGF HS2000 |
| Type: | Medium flow type, medium high flow type, high flow type |
| Input pressure: | 0~6 bar |
| Maximum input pressure: | 20 bar |
| Self-sealing capacity: | ≈2 bar |
| Fluid viscosity: | from water to paste, can be applied to particle-containing fillers |
| Flow rate: MAX: | 31.5 ml/min, MAX: 90 ml/min, MAX: 180 ml/min |
| Compatible stator and rotor models: | DM350, DM1000, DM2000 |
| Minimum dispensing volume: | 0.01ml, 0.02ml, 0.04ml |
| Output accuracy: | ±1 % |
| Rotor material: | SUS304/SUS316L/Zirconia ceramics |
| Stator material: | FFKM/PU/EPDM/NBR |
| Wetted part material: | SUS304/POM/PTFE/PEEK/AL |
| Feed port: | G1/2 thread · KF16 |
| Outgoing port: | G1/4 thread, high-pressure needle |
| Ambient temperature: | 10~40 °C |
| Dispensing consistency: | >99% |
