  • Six-axis double Y screw machine Screw T7 series

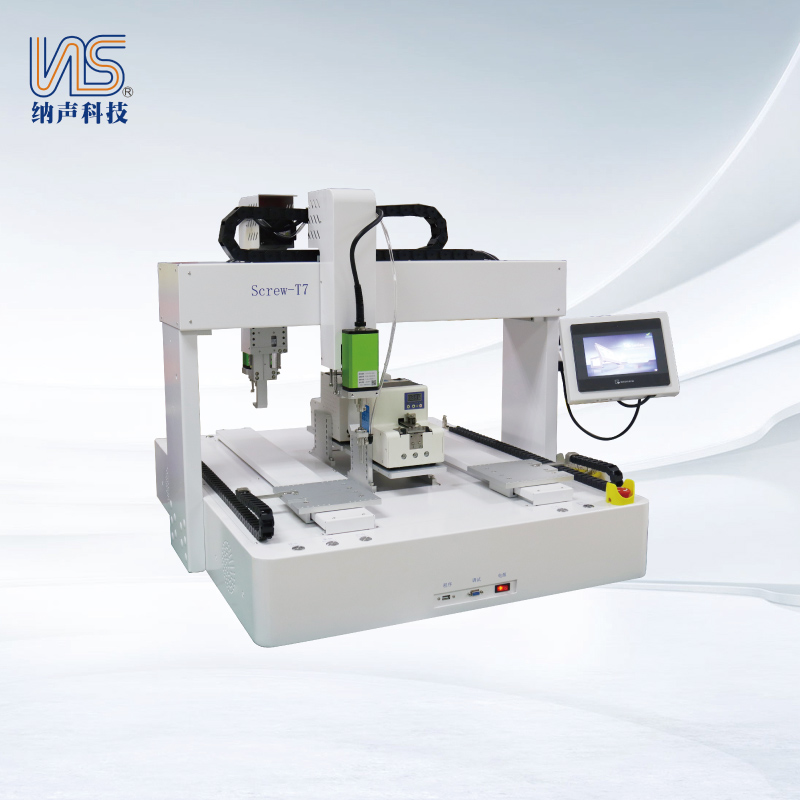

Six-axis double Y screw machine Screw T7 series

Product   features

Feeding mode:   magnetic suction/adsorption/blowing (optional)

1.   Various screw locking processes can be merged;

2.   Six-axis back-to-back double platforms and double-head locking attachment,   which can work
    alternately and double the efficiency;

3.   Intelligent detection of missing lock, floating lock, sliding tooth and   floating height, height coordinates;

4. Equipped with self-developed motion control   card, fool-like programming, touch screen display torque and locking   efficiency!


Share
Product parameter
product modelNS.SF.5577-2TD-A/B
Equipment   travel640mm*800mm*100mm(X*Y*Z)
Lock payment   range220*680mm (single Y   platform) four stations
Linear guideTHK/
positioning   accuracy±0.02mm
control systemMulti-axis motion   control card+touch screen
Feeding modeAdsorption/magnetic   attraction
Number of   feeders2 groups
Locking   efficiency1~1.5S/PCS
Program   capacity100 groups
Input power supplyAC220V 50Hz
powerAC220V /800W
Input air   pressure0.4-0.6MPa
outline   dimension(L*W*H)1130mm*780mm*800mm
Body weight90Kg
