Product introduction

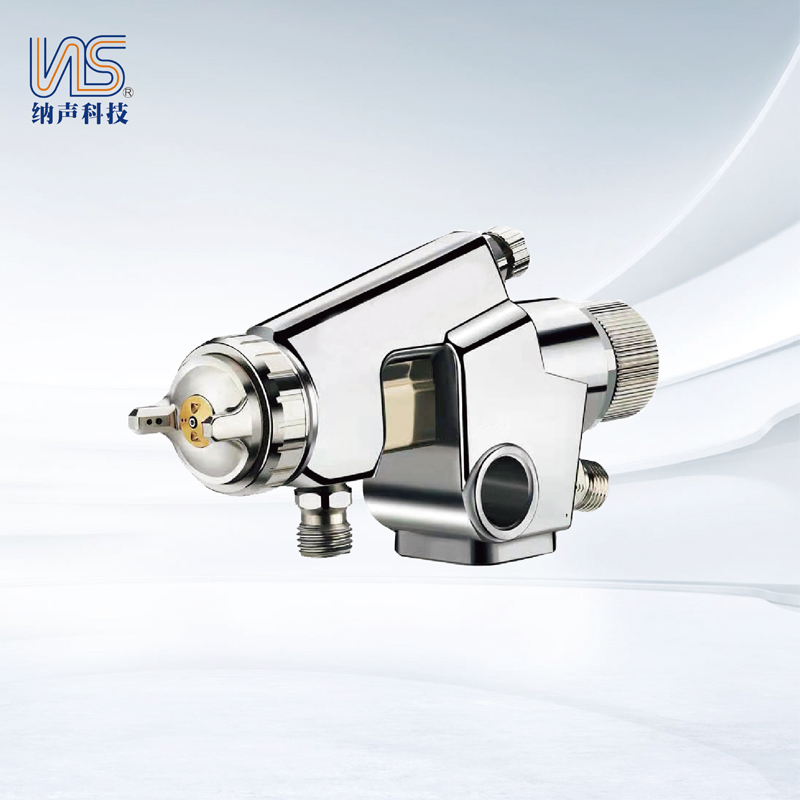

Automatic paint spraying gun is combined with automatic spraying machine, reciprocating spraying machine and spraying robot, which is suitable for batch production.
| Product features | |||
| 1 has a relatively high material pressure, the material to be sprayed is conveyed to the spray gun through high pressure, and the material is atomized in through the MIX core of spray gun; | |||
| 2. Secondary auxiliary fine atomization is carried out by auxiliary air, and the small auxiliary air pressure (adjustable from 0.24 MPa to 0.29 MPa) can be adjusted according to the viscosity of the material; | |||
| 3. Less paint waste, less rebound and 85%-93% painting rate; | |||
| 4 high viscosity materials can be sprayed; | |||
| 5.MIX mixed cores have different calibers, and the caliber can be selected according to the viscosity of the material; | |||
| be applied to | |||
| Catalyst coating material grease ink liquid flux oil silica gel solvent | |||
| Specifications and parameters | |||
| product name | Automatic spray gun | ||
| Used air compressor | 0.8、1.0、1.3、1.5、1.8mm | ||
| Nozzle diameter | 317.5 grams | ||
| Spraying method | Press-feed type | ||
| Spray amplitude size | 190-240mm | ||
| Spraying air pressure | 0.24mpa-0.29Mpa | ||
| Spraying distance | 200mm | ||
| Ejection quantity | 150-310mL/min | ||
