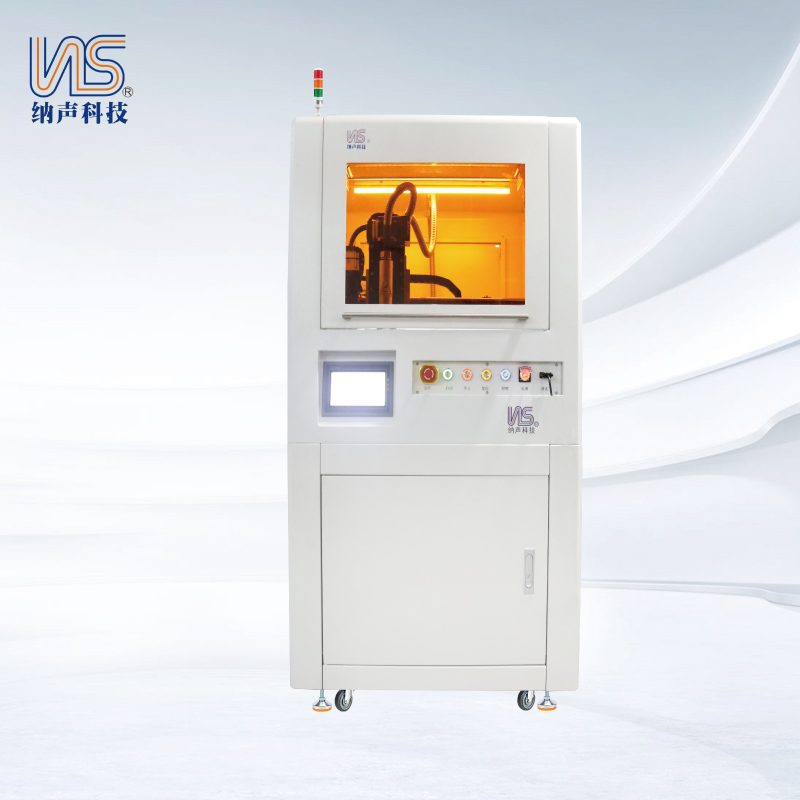

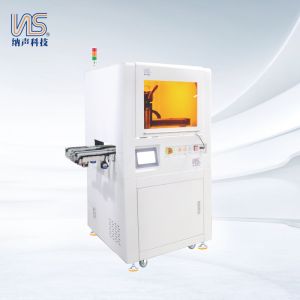

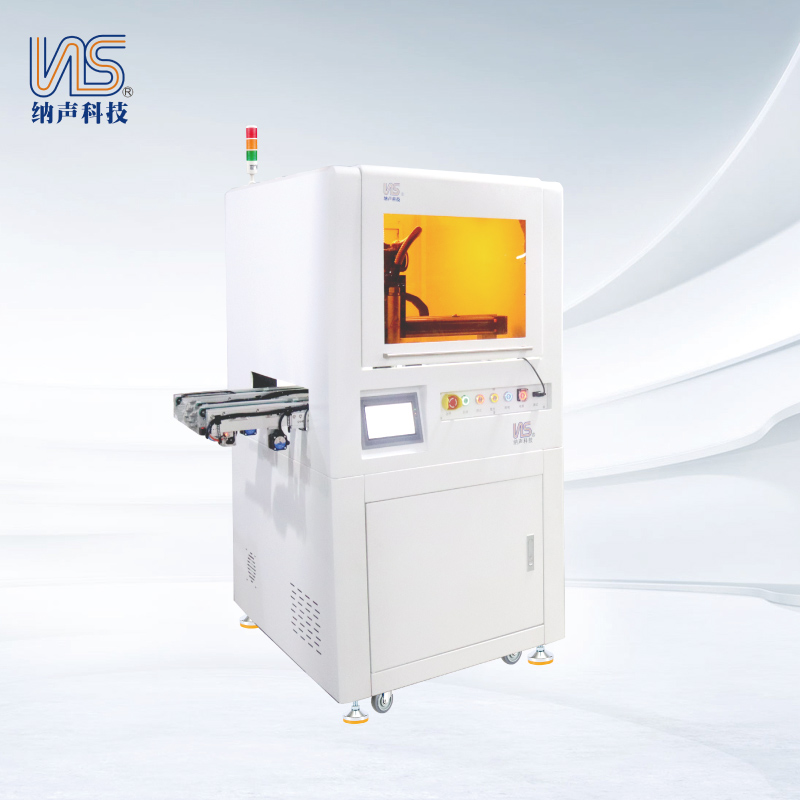

On-line plasma surface activation treatment

Peculiarity:

1. Docking the front and rear wire bodies, working online, and cleaning materials in a vacuum cavity;

2. More than two gases can be connected at the same time;

3. Automatic production operation can be realized by docking with the production line, and the QR code can
 be scanned and uploaded;


Share

product mode:NS.FB.461

Technical parameters:
Range of motion(XYZ)400*600*100mm
maximum load(Y/Z) 20KG/15KG
rate of travel(XY/Z) 0.1-600mm/s (2)0.1-300mm/s
repeatability0.02mm
Docking heightHeight of belt from ground to track: 950 mm (adjustable by 20 mm)
type of driveHigh precision AC servo system (with 17-24 bit encoder)
Transmission modeBelt module
Control modeMotion controller
Programming modeHand knitting machine
Input power supplyAC110V/220V/50-60HZ 1.5kW
Working environment humidity5-40°C/20-90% non-condensing
External dimensionL840*W1100*H1600mm
Body weight600Kg
