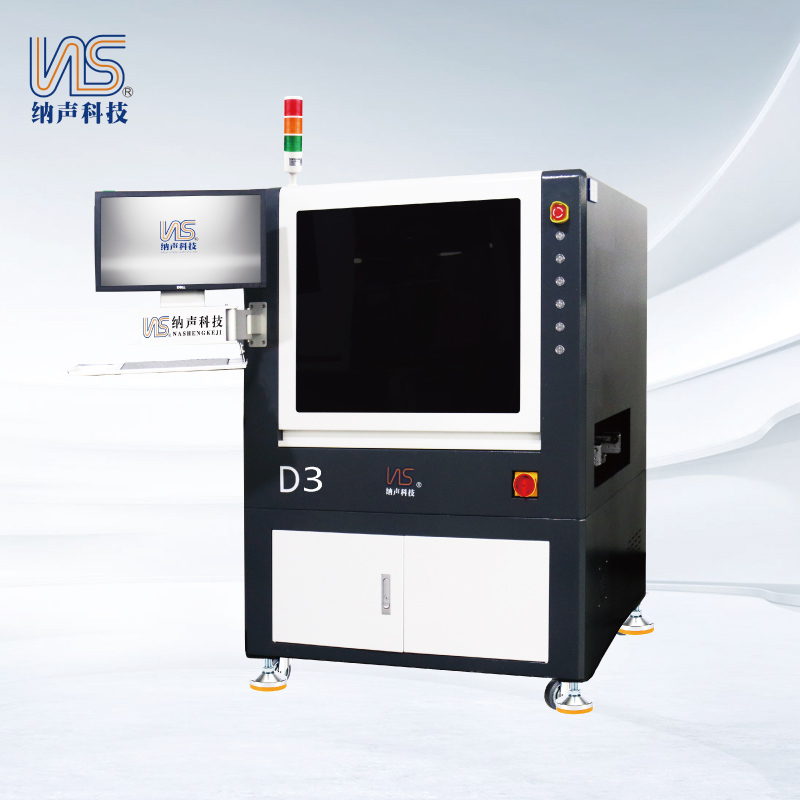

1. Intelligent vision dispensing system, which coordinates with MARK to take photos, position and correct dispensing trajectory in real time, and guide dispensing;
2. On-line production with assembly line to improve production capacity;
3. Equipped with injection valve function module and non-contact dispensing to realize smaller dispensing diameter, and can also be equipped with other dispensing valves and wider application fields;
4. It is suitable for the height dispensing of post-compensation silica gel;
product model：NS.SP.451H-PL
Range of motion：(XYZ)400*500*100mm
maximum load：（Y/Z）5KG
rate of travel：(X/Y axis) 0.1-600mm/s, (Z axis) 0.1-300mm/s
repeatability：±0.01mm
Docking height：Monorail: 50-350mm
Track width adjustment range：Height of belt from ground to track: 900 mm (adjustable by 30 mm)
type of drive：High precision AC servo system
Transmission mode：Screw module
Programming mode：Man-machine interface CCD assisted
Input power supply：220V
Working environment humidity：5-40°C/20-90% non-condensing
External dimension：L860*W1000*H1700mm
Body weight：ABOUT 100KG
