PL application industry
Filling, encapsulating and reinforcing the bottom of mobile phone frame, PCB, FPC and other components;
Precision dispensing of VCM, CCM, TWS, speakers, motors and other products;
Semiconductor system-level package SIP, MEMS precision dispensing, micro-dispensing solder paste, etc.
| technical parameter： | ||||

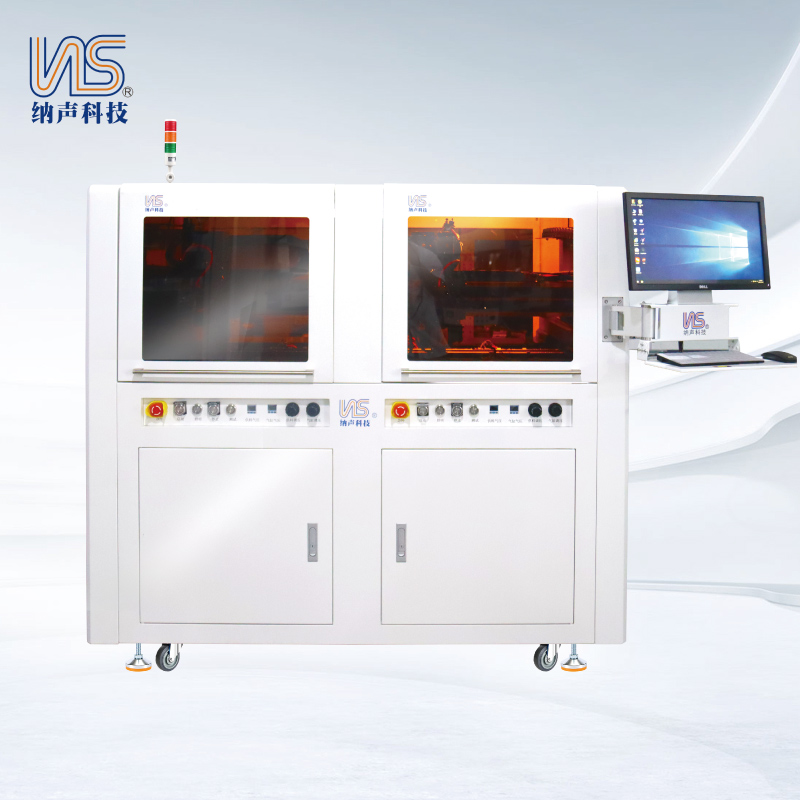

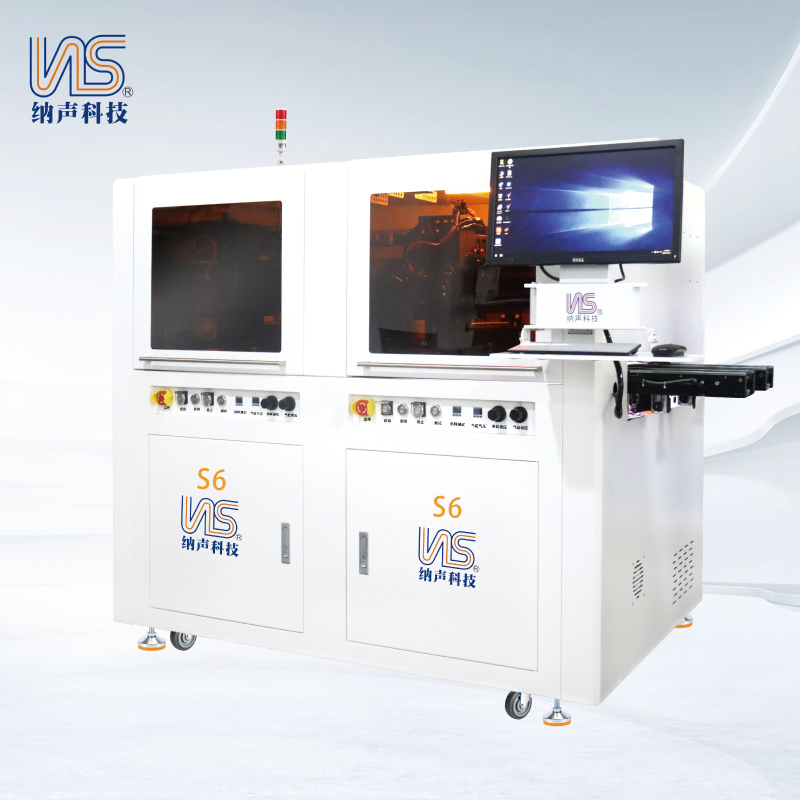

| product model | NS.SP.461HE-PL | NS.SP.4661HE-PL | ||
| Range of motion | （X/Y/Z）400/600/50mm | （X1X2/Y1Y2/Z1Z2）400/600/50mm | ||
| maximum load | (Z axis) 5KG (up to 7KG with optional brake module) | |||
| rate of travel | （X/Y axis）0.1-800mm/S（Z axis）0.1-400mm/S | |||
| repeatability | ±0.01mm | |||
| Track width adjustment range | Monorail: 60-470mm, maximum length: 475mm (height300mm) | dual-track：60-470mm, maximum length: 475mm (height300mm) | ||
| Docking height | Height of belt from ground to track: 950(±20mm adjustable) | |||
| type of drive | Servo motor+screw module | |||
| Transmission mode | Stepper motor+runner | |||
| operator schema | Visual guidance | |||
| Programming mode | Keymouse+display | |||
| Visual positioning system | High-pixel industrial cameras are standard. | |||
| Recognition range | 30mm*30mm | |||
| power | 2000W | |||
| Input power supply | AC 110V/220V(Internal switching）50-60HZ | |||
| Working temperature | 5-40℃/20-90％No condensation | |||
| outline dimension | L1600*W1140*H1500mm | |||
| Body weight (kg) | About 1000kg | Approx. 1200kg | ||
| Product features | 1. High efficiency, two sets of independent XYZ motion systems work at the same time, and the efficiency is improved by more than 80%; 2. High-precision whole system dispensing, including glue points and glue lines; 3. One machine can be used for multiple purposes, and two different dispensing processes can be produced simultaneously; Closed-loop process control ensures the consistency of dispensing amount in continuous production; 4. Integrated vision system, providing coaxial or off-axis illumination mode and programmable dual-axis tilt option; | 1. High efficiency, simultaneous operation of two independent dispensing systems, high precision, and asynchronous motion control of double valves; 2. One machine can be used for multiple purposes, and two different dispensing processes can be produced simultaneously; Process control ensures the consistency of dispensing amount in continuous production; 3 configurable code scanning system, integrated pipeline management; 4. Automatically and quickly capture Mark positioning, search and identify the product contour, automatically correct and compensate, and the dispensing position is accurate; | ||
| Comprehensive Capacity Of Injection Valve | |||
| Minimum Point meridian: 0.15mm | Minimum Line Width: 0.2mm | Minimum Glue Amount: 0.5nl | |
