1. The head needle rotates to dispense glue;
2. Professional high-speed dispensing system, all common dispensing command processes such as high controllable points, straight lines, multi-segment lines, arc lines, circles and rectangular circles fillingthree-dimensional space trajectories;
3. Configurable code scanning system and integrated pipeline management;
4. Automatically and quickly capture the positioning of Mark, search and identify the product contour, automatically correct and compensate, and the dispensingposition is accurate, which is suitable for the multi-height dispensing of the post-compensati on silicone;

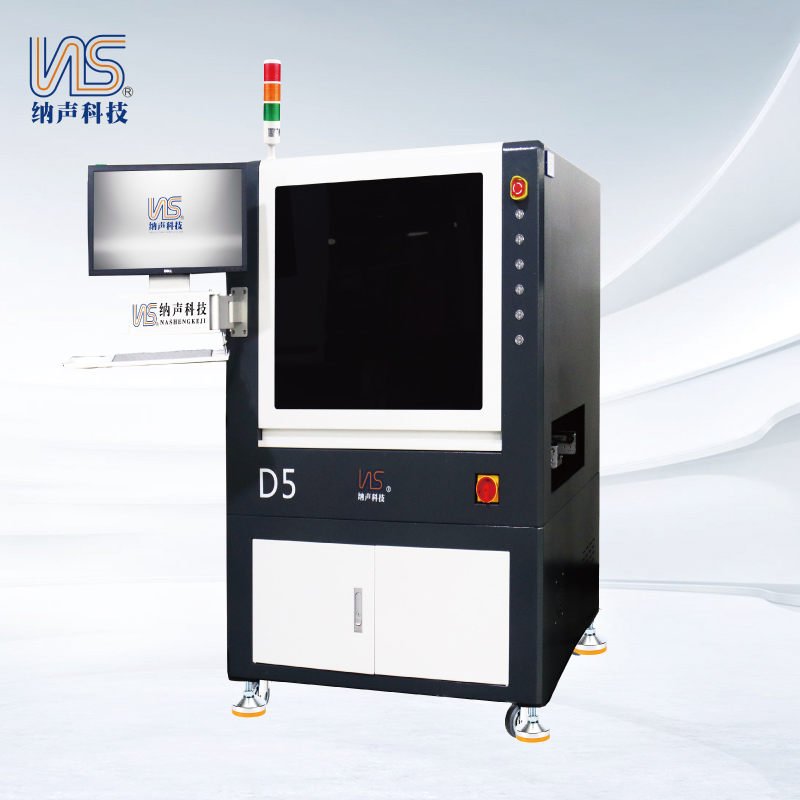

product model：NS.SP.551HE-R-PL
Range of motion::(XYZ)500*500*100mm R-axis rotation: 360°
maximum load:：（Y/Z）5KG
rate of travel：(X/Y axis) 0.1-600mm/s, (Z axis) 0.1-300mm/s
repeatability：±0.01mm
Docking height：Height of belt from ground to track: 900 mm (adjustable by 20 mm)
Track width adjustment range：Monorail: 50-450mm
type of drive：High precision AC servo system
Transmission mode：Screw module
Programming mode：Man-machine touch interface
Visual positioning system：Standard 1.32 million pixel industrial camera (pixel optional: 3M or 5M)
Visual resolution：0.01*0.01mm/Pixel(adjustable)
Recognition range：14*14mm
Input power supply：220V
Working environment humidity：5-40°C/20-90% non-condensing
External dimension：L1040*W1050*H1700mm
Body weight：ABOUT 100KG
