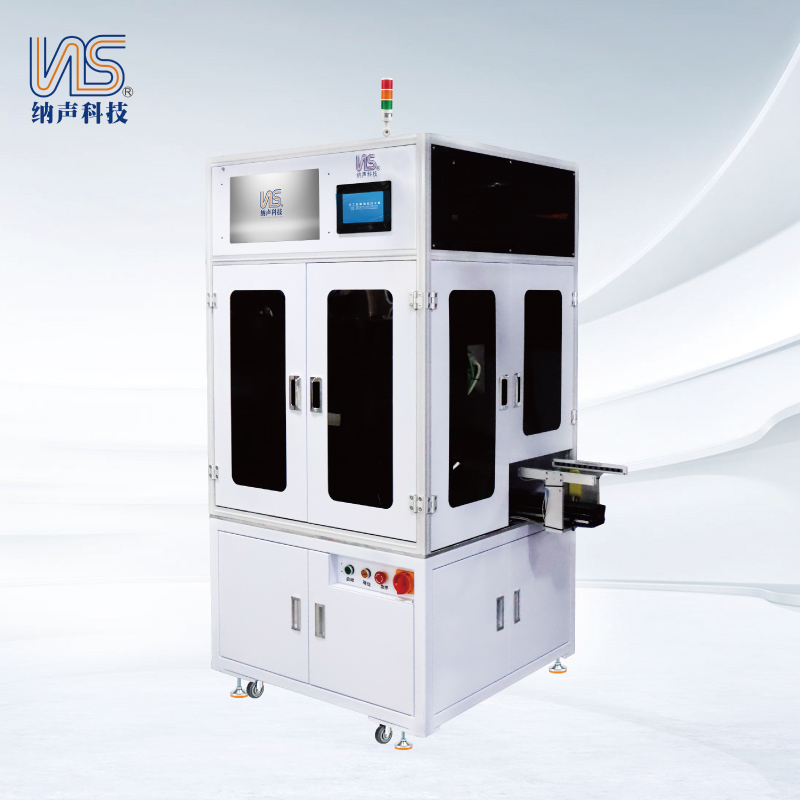

On-line visual screw machineNS.SF.SCARA-4/6

Feeding mode:

magnetic suction/adsorption/blowing (optional)

1. Adapt to various locking surfaces, modular design, flexible deployment, and quick production change;

2. Real-time monitoring of the locking process improves the efficiency by more than 80% compared with manual work;

3. Standard visual deviation correction, even if the workpiece deviation can be easily fixed;

4. It has the function of product formula, and avoids the trouble of repeated teaching when switching saved products;

Inquire Now Next Product

specifications and models：NS.SF.SCARA-4/6

Electric batch model：Servo batch

Is the visual system standard：Yes

Nail supply mode：Vacuum suction/magnetic suction/blowing type

Length diameter ratio of screw：Screw length-1.2 times the diameter of screw cap

Adapter screw diameter：M1--M5

Tightening torque range：0.1-9kg

Standard cycle time：0.3s

Screw feed efficiency：0.5s

Can the tightening procedure be controlled by program：Yes

Can torque be displayed digitally：Yes

Scope of work *2：Radius 600mm

power：2000W

Z-axis stroke：100mm

Does it have its own floating height perception：Yes

Does it have sliding tooth perception：Yes
