  • Online belt segmented automatic locking screw machine

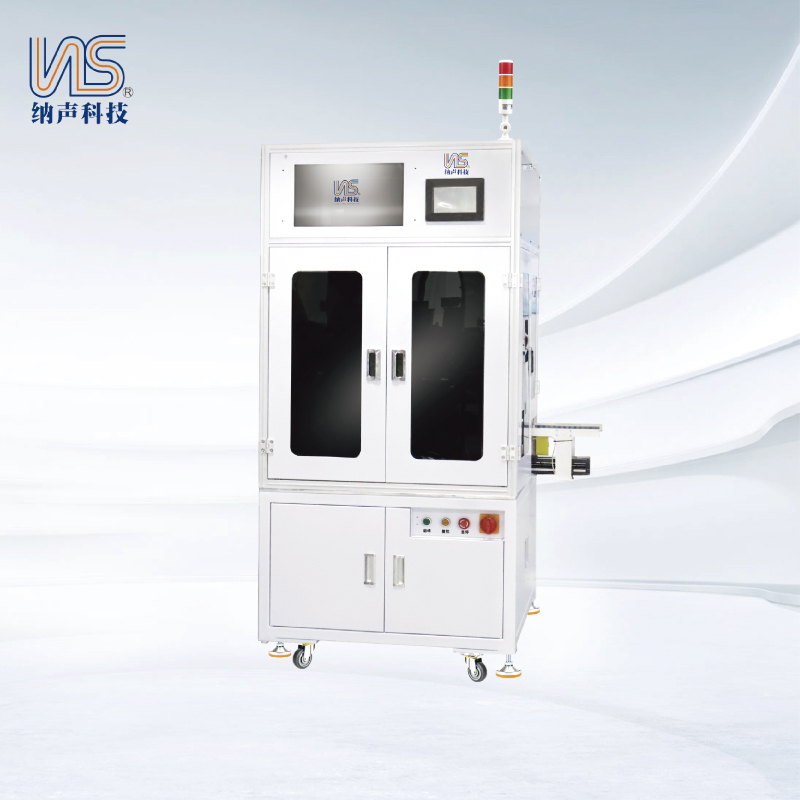

Online belt segmented automatic locking screw machine

Product features

1、Adapting to various locking surfaces, modular design and flexible deployment, which can quickly change production.

2、Real-time monitoring of locking process, which improves the efficiency by more than 80% compared with labor;

3、Visual deviation correction is standard, even if the workpiece deviation can be easily solved:

4、It has the function of product formula, and avoids the trouble of repeated teaching when switching saved products;

Share
Product parameter
specifications and modelsNS.SF.SCARA-4/6
Electric batch modelServo batch
Is the visual system standardYes
Nail supply modeVacuum suction/magnetic suction/blowing type
Length diameter ratio of screwScrew length-1.2 times the diameter of screw cap
Adapter screw diameterM1--M5
Tightening torque range0.1-9kg
Standard cycle time0.3s
Screw feed efficiency0.5s
Can the tightening procedure be controlled by program?Yes
Can torque be displayed digitallyYes
Scope of work *2Radius 600mm
power2000W
Z-axis stroke100mm
Does it have its own floating height perception?Yes
Does it have sliding tooth perceptionYes
