  • Off-line six-axis screw machine

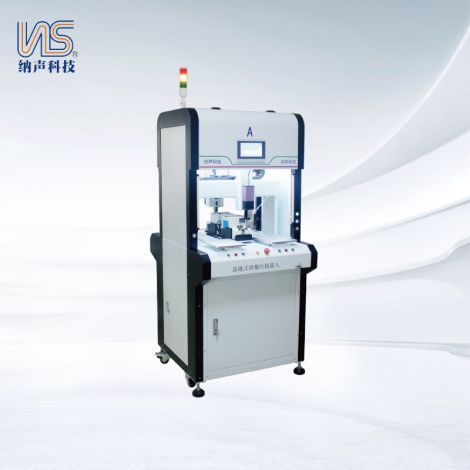

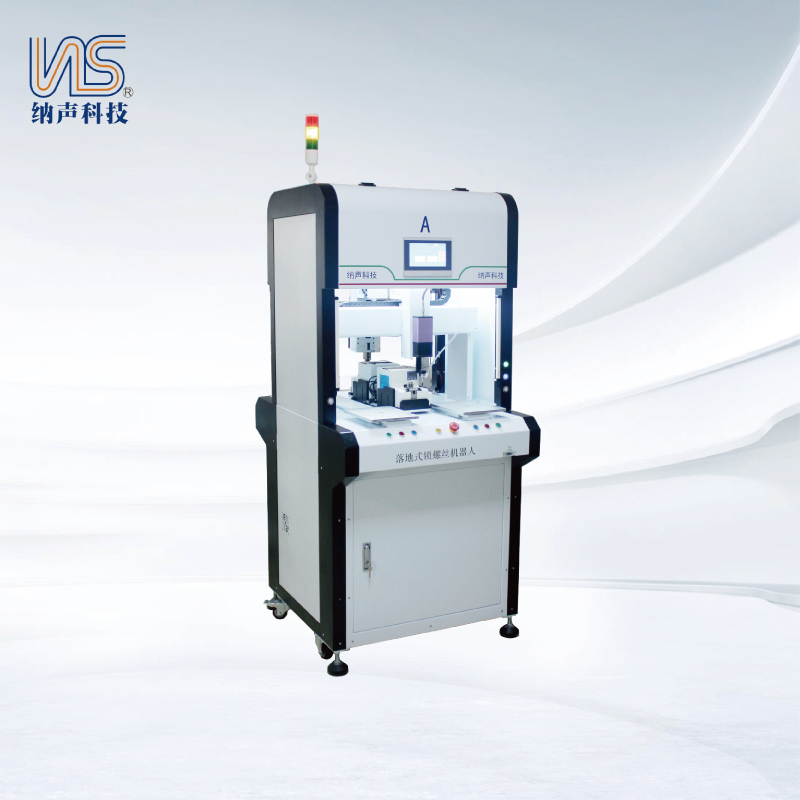

Off-line six-axis screw machine

Product features

Feeding mode: magnetic suction/adsorption/blowing (optional)

1、Support deep holes, inclined holes, cambered surfaces, surfaces with different heights, stainless steel screws and meson screws;

2、Intelligent servo batch can support one product to lock and pay three different torques;

3、Intelligent detection of painful lock, floating lock, sliding tooth and floating height, and automatic recording of floating height coordinates;

4、Cabinet structure with high-end atmosphere. The ceiling is equipped with lights, and the front and back are equipped with gratings, so the operation is safe and reliable;


Share
Product parameter
product modelNS.SF.6688-2TOL-A/B
Equipment travel640mm*800mm*100mmX*Y*Z
Lock payment range220*680mm (single Y platform) four stations
Linear guideTHK/
positioning accuracy±0.02mm
control systemMulti-axis motion control card+touch screen
Feeding modeAdsorption/magnetic attraction
Number of feeders2 groups
Locking efficiency1~1.5S/PCS
Program capacity100 groups
Input power supplyAC220V 50Hz
powerAC220V /800W
Input air pressure0.4-0.6MPa
outline dimension(L*W*H)1030mm*900mm*1650mm
Body weight200KG
