  • Off-line six-axis screw machineNS.SF.6688-2TOL-A/B

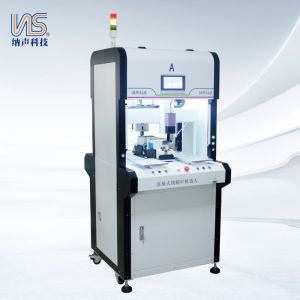

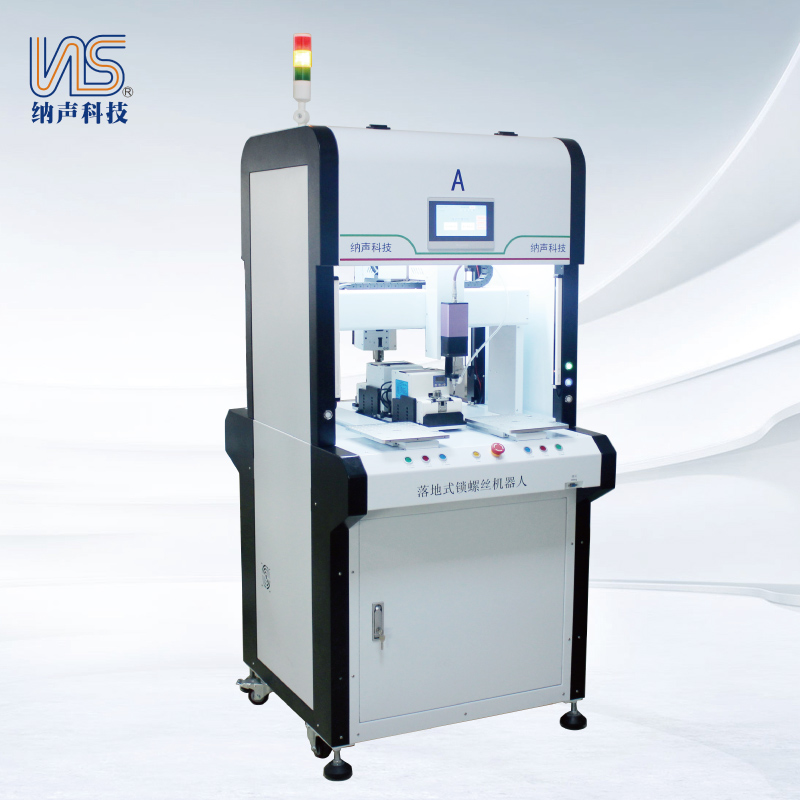

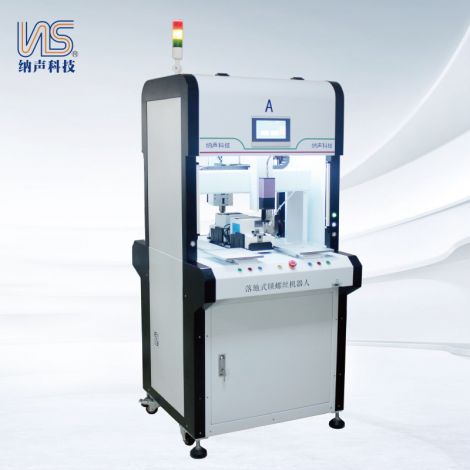

Off-line six-axis screw machineNS.SF.6688-2TOL-A/B

Feeding mode:

magnetic suction/adsorption/blowing (optional)

1. Support deep holes, inclined holes, cambered surfaces, surfaces with different heights, stainless steel  screws and meson screws;

2. Intelligent servo batch can support one product to lock and pay three different torques;

3. Intelligent detection of painful lock, floating lock, sliding tooth and floating height, and automatic recording  of floating height coordinates;

4. Cabinet structure with high-end atmosphere. The ceiling is equipped with lights, and the front and back are  equipped with gratings, so the operation is safe and reliable;

Share

product model:NS.SF.6688-2TOL-A/B

Equipment travel:640mm*800mm*100mm(X*Y*Z)

Lock payment range:200mm*350mm,220*680mm (singleY platform) four stations

Linear guide:THK/

positioning accuracy:±0.02mm

control system:Multi-axis motion control card+touch screen

Feeding mode:Adsorption/magnetic attraction

Number of feeders:2组

Locking efficiency:1~1.5S/PCS

Program capacity:100组

Input power supply:AC220V 50Hz

power:AC220V /800W

Input air pressure:0.4-0.6MPa

outline dimension:(L*W*H)1030mm*900mm*1650mm

Body weight:200KG
