  • Off-line vision four-axis large-stroke screw machine F12

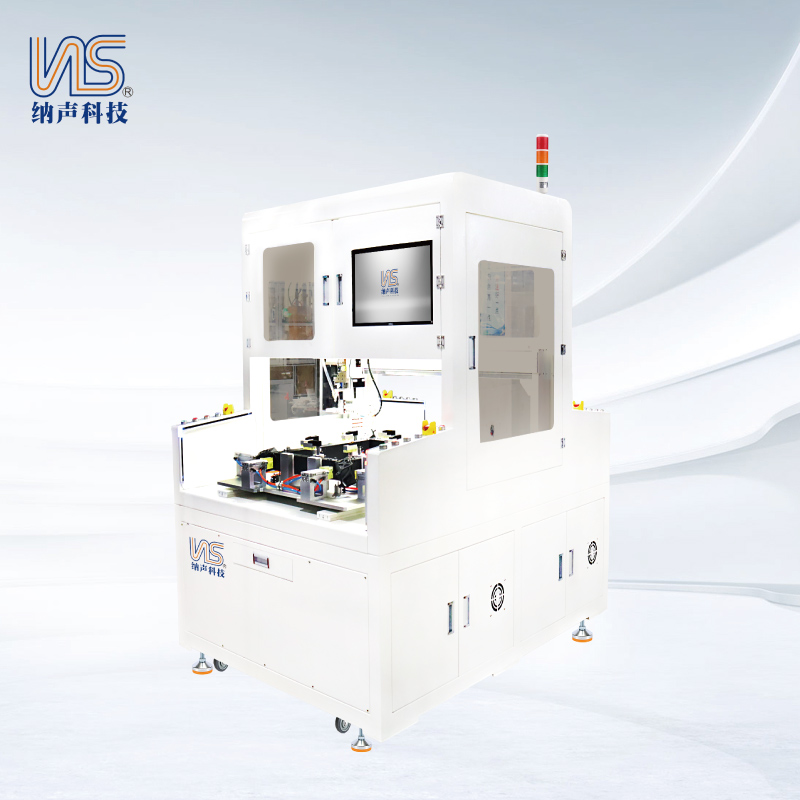

Off-line vision four-axis large-stroke screw machine F12

Product features

Feeding mode: magnetic suction/adsorption/blowing (optional)

1、Intelligent detection of pain lock, floating lock, sliding tooth, floating height aof floating height c

2、You can connect to WLAN network, access MES system and configure win10 system;

3、An automatic gluing function system is added, and the screws are glued to lock the screws;

Share
Product parameter
product modelNS.S F.1216HE-2TP L-B
Locking range1000*1200*200m mX*Y*Z
Linear guideShangyin/THK/yintai
repeatability±0.02mm
operator schemaVisual positioning and visual detection
Feeding modeAdsorption/magnetic attraction
Programming modetouch screen
Input power supplyAC220V / 50-60Hz 1.4kw
Working environment humidity5-40°C/20%-90%
outline dimensionL1790*W1380*H1820
