Product features
1、Glue matching accuracy: high-precision gear pump, giving full play to its advantages, a brand-new technical large glue
2、Original timing glue discharging system: to prevent glue pouring from temporarily stopping during shift change and rest, and the glue in the mixing system will solidify after the glue operation time, and the operation time delayed indefinitely.
3、Automatic cleaning system: The machine adopts liquid separation and sub-packaging, mixing only atoutlet, andoperate.
4、Integrated design of glue dispensing and pouring, with automatic operation.
| Product features | |

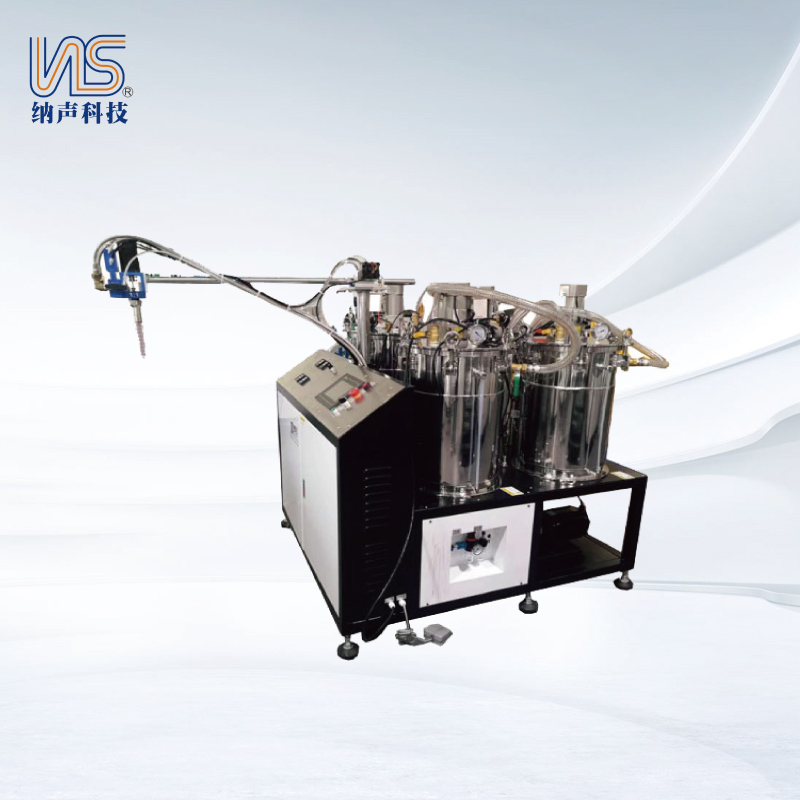

| device name | Semi-automatic glue filling machine |
| outline dimension | 950*650*1500mm |
| Pouring speed | 5-15g adjustable (there are some differences according t characteristics of glue) |
| Glue pouring accuracy | Glue content 2%, proportion: 2% |
| Glue ejection accuracy | Glue content 2%, proportion: 2% |
| Input air pressure range | 0.4-0.8MPa |
| Head seal compression | MAX≤2.6Mpa |
| Viscosity of glue and water | <10000CPS |
| Mode of operation | manual |
| Proportional control of glue content | High precision metering pump |
| A/b rubber drum capacity | 50L |
| Rated power supply | 220V 50Hz 1000W |
| A/B pumps | Screw pump 24CC／/gear pump 6CC |
