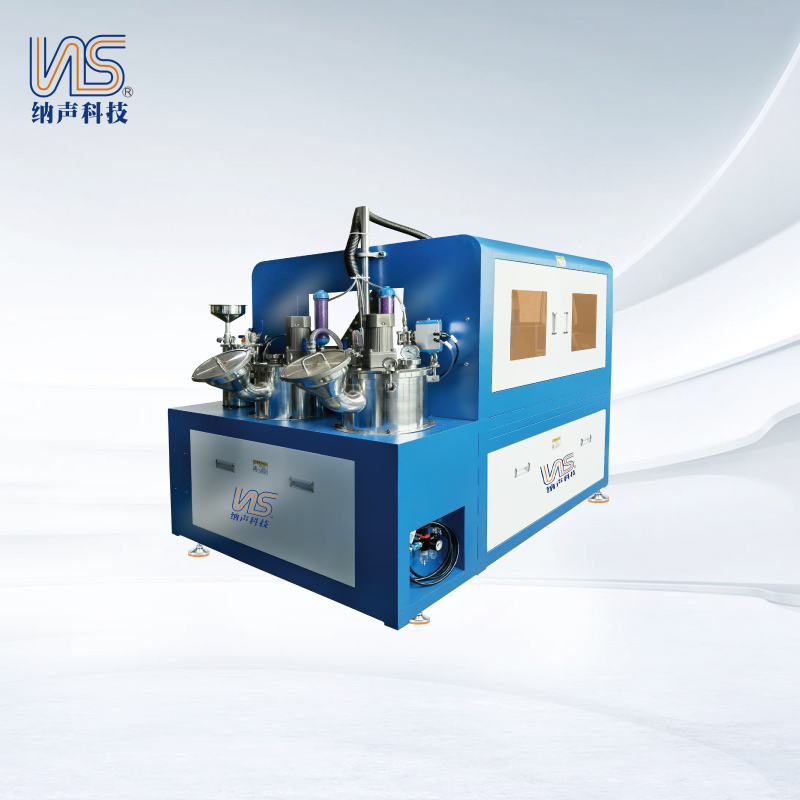

Product features
1、Accurate proportioning, automatic mixing and automatic quantitative dispensing of two-component glue are achieved by accurately controlling the metering motor.
2、It has the functions of vacuum feeding and vacuum defoaming, optional heating stirring, automatic cleaning, pressure monitoring, etc., and can cope with various glue environments.
3、Stable operating system, friendly interface and high cost performance.
4、 Unique delivery system, cleaning system, vacuum pump, glue filtration and pressure detection can be selected.
| technical parameter | ||
| Equipment use | Automatic glue filling of products | |
| Glue pouring environment | ordinary pressure | |
| control system | PLC+Touch Screen (Mitsubishi PLC+Veyron Touch Screen) | |
| Glue type | Polyurethane, (silicone, epoxy resin) | |
| Glue ratio | 1：1~1：10 | |
| Proportioning accuracy | ±2% | |
| Rubber mixing mode | Dynamic mixing valve | |
| Rubber tank volume | A glue 25L, B glue 25L | |
| Glue outlet speed | 1-15 g/s | |
| air supply | 0.5-0.7 MPa or more; Pipe diameter Φ8 | |
| Equipment size | 1550*1150*1450mm | |
| functional description | Program storage function | The equipment can store multiple sets of pouring/dispensing parameters, and the same product re-edit the parameters and procedures. |
| Anti-curing function | Automatically start the anti-curing function after stopping for a period of time (freely set), and automatically dischar ge a small amount of glue into the glue box to prevent the glue from curing; | |
| Program monitoring function | The program monitors the vacuum defoaming and automatic stirring of tanks A and B in real time, and the tanks and pipelines are equipp ed with heating systems, tank stock and other systems. When there is a fault,display the fault position on the operation interface. | |
