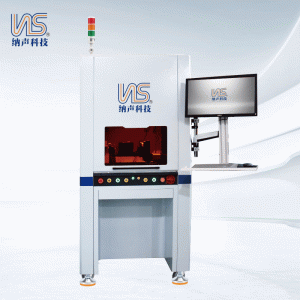

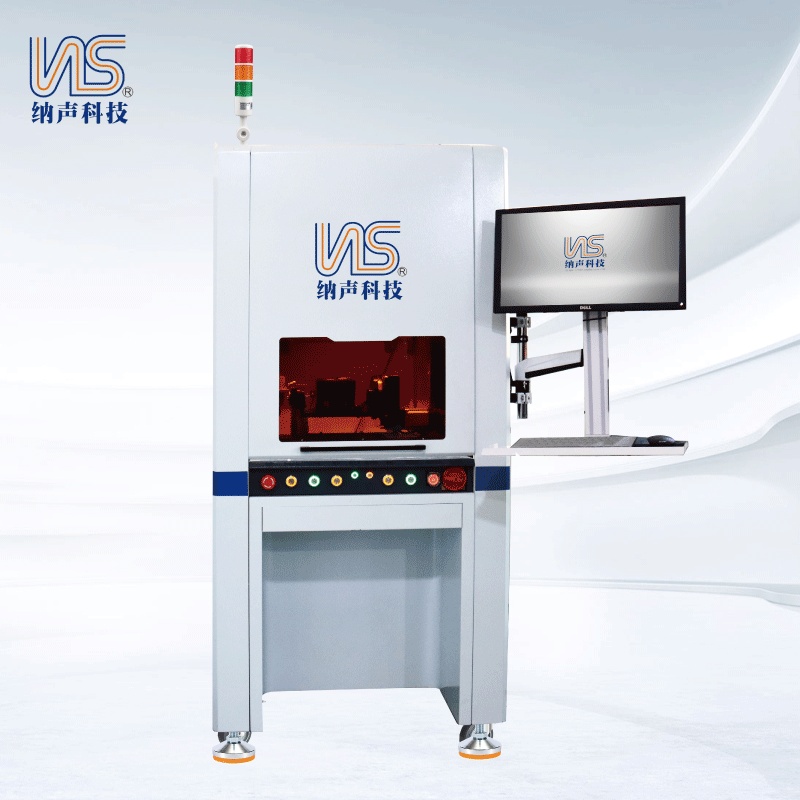

Five-Axis Linkage Precision Dispensing Machine N3-Pro

1. Using cubic space spline curve interpolation technology, the machining accuracy of trajectory is 0.03mm;

2. The five-axis trajectory speed is second-order continuous, and the glue is even, and there is no glue acc umulation at the corner;

3. Visual automatic measurement of five-axis equipment parameters improves the installation efficiency,  and the accuracy can reach 0.03mm;

4. Using vision technology to correct the product clamping error, with the highest accuracy of 0.01mm；

5. The highest idle speed of the equipment can reach 800 mm/s, and the highest speed ssing is 200 mm/s;

6. Glue thickness should be controlled within 0.2mm;

7. Using software spatial spline curve motion interpolation technology algorithm and visual aided teaching  guidance to realize accurate and smooth dispensing of spatial curve;
