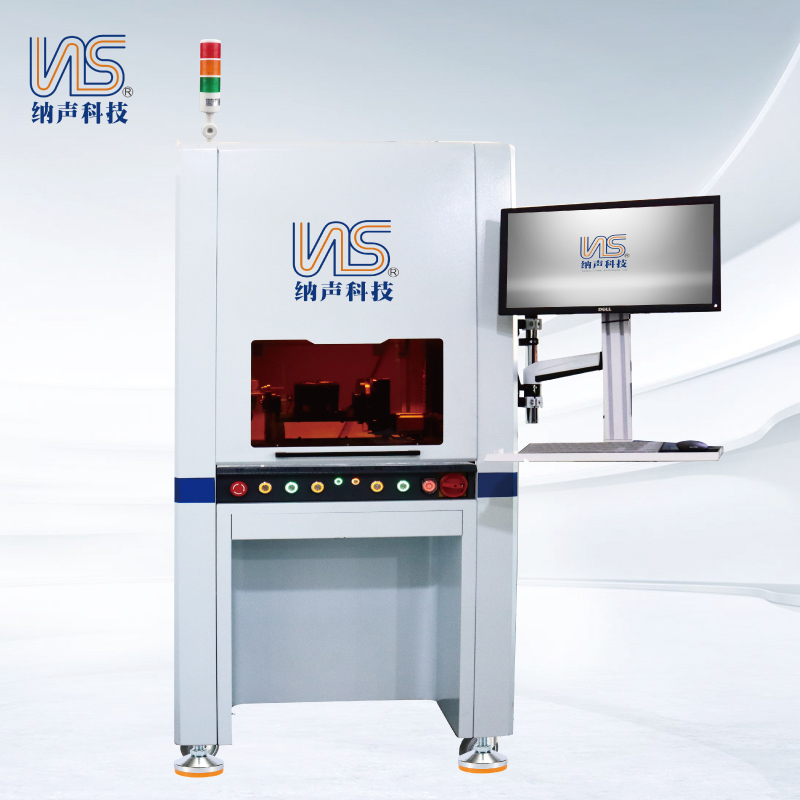

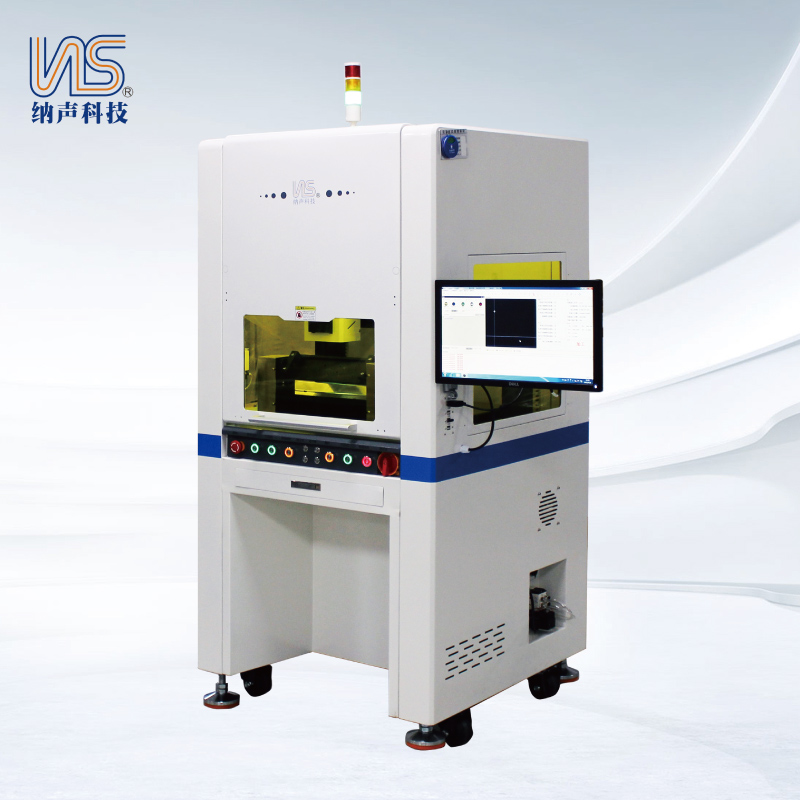

Double Y Precision Dispensing Machine N4

1. Automatically and quickly capture Mark positioning, search and identify the product contour, automatically  correct and compensate, and the dispensing position is accurate;

2. Professional equipped with injection valve function module, non-contact dispensing, realizing s maller dispensing diameter, also equipped with other dispensing valves, and wider application  fields;

3. The travel, movement speed and acceleration of each axis can be customized as required;

4.MES, glue valve, alignment sensor, Ethernet and scanning code gun can be upgraded;

Share
product nameDouble y precision dispensing machine
product modelNS4331HENS5552HE
Range of motion400*300*300*100mm500*500*500*200mm
A/v rotation axis repeatability accuracy(Y/Z) 20KG/15KG
maximum load(x/Y) 0.1-600mm/s (2)01-300mm/s
rate of travel±0.01mm
repeatability64G/120G
Storage memoryHigh precision AC servo system (up to 24-bit encoder)
operator schemaIndustrial control computer
Transmission modeSilent lead screw precision module (grinding stage)
Visual positioning systemHigh-pixel industrial cameras are standard
Control modeMulti-axis motion control card
Programming modeKeymouse+display
Visual resolution0.010.01mm/Pixel
Recognition range14*14mm
Input power supplyAC110W1220V/50-60HZ1.5kw
Working environment humidity5-40C/20-90%
External dimensionWLH:810*810*1700mm
Body weightApprox. 200KgApprox. 280Kg
