1. High-precision, five-axis linkage control system, which can optionally be matched with 3D line scanning camera to do the inspection function of guiding glue dispensing;
2. Off-line manual feeding and discharging can be carried out on a single machine, or feeding and discharging tracks can be configured to connect upstream and downstream equipment for online production;
3. High efficiency, double-station design, simultaneous operation of dispensing and CCD positioning/3D code scanning;

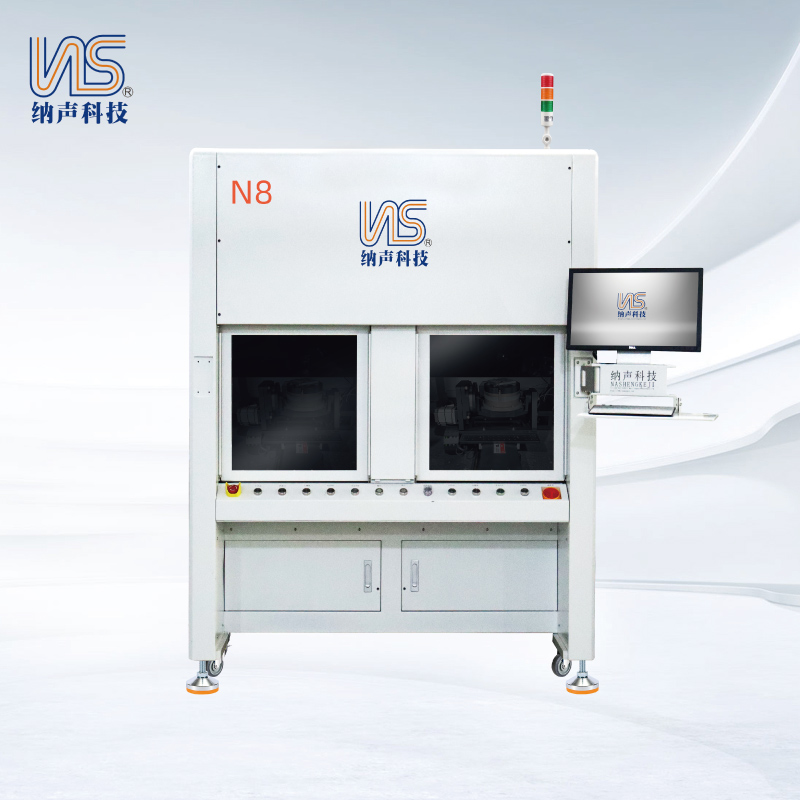

| product name | Double y five-axis linkage high-speed precision dispensing machine | |
| product model | NS8552HHE | NS8552HHE-AV |
| Range of motion | （X/Y1Y2/Z/A1/V1/A2/V2）800*500*500*200mm | （X/Y1Y2/Z/A1/V1/A2/V2） 800*500*500*200*360°*360°*360°*360° |
| A/v rotation axis repeatability accuracy | ±2 arc sec | |
| maximum load | (Y/Z) 20KG/15KG | |
| rate of travel | (x/Y) 0.1-1000mm/s (Z) 01-300mm/s | |
| repeatability | ±0.01mm | |
| Storage memory | 500G | |
| type of drive | XY: linear motor z: servo motor | |
| operator schema | Industrial control computer | |
| Transmission mode | Silent lead screw precision module (grinding stage) | |
| Visual positioning system | 2D camera | |
| Control mode | Multi-axis motion control card | |
| Programming mode | Keymouse+display | |
| Visual resolution | 0.01*0.01mm/Pixel(adjustable) | |
| Recognition range | 14*14mm | |
| Input power supply | AC110V/220V/50-60HZ 1.5kW | |
| Working environment humidity | 5-40°C/20-90% non-condensing | |
| External dimension | L1500*W1300*H1900mm | |
| Body weight | Approx. 800Kg | Approx. 820Kg |
