Peculiarity:
1. Intelligent vision dispensing system, which coordinates with MARK to take photos, position and correct dispensing trajectory
in real time, and guide dispensing;in real time, and guide dispensing;
2. Meet the requirements of dispensing glue in narrow borders and narrow spaces;
3. Equipped with injection valve function module, non-contact dispensing can realize smaller dispensing diameter, and can
also be equipped with other dispensing valves, as well as a wider application field. 4. Stable dispensing line width or dispensing point diameter of 0.25mm can be realized; application field.

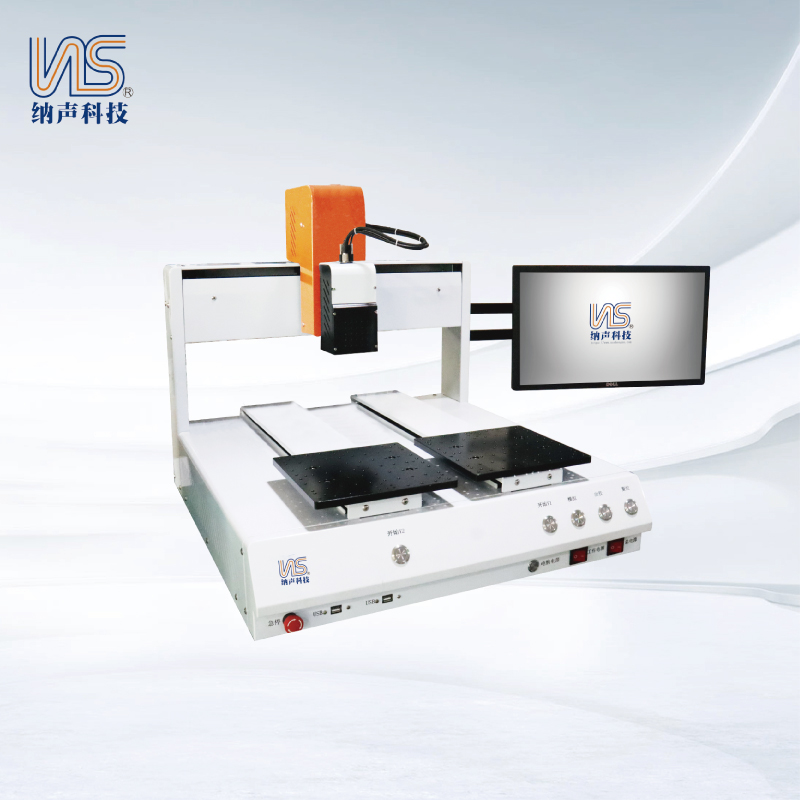

product model：NSSP.930H-Y/940HE-Y
| Technical parameters： | ||
| Platform moving speed type | (XY)0.1-400/(Z)300mm/s | |
| Range of motion stroke | (X)400(Y1Y2)300(Z)100mm/s (stroke can be customized) | |
| repeatability | ±0.01mm | |
| Memory storage | Super-capacity high-speed file storage, which can store 999 files with 56,000 points each (supporting U disk COPY). | |
| 1/0Newsl | 4nputs | |
| Memory storage | AC110V/220V (internal switching) 50-60HZ/power: 800W | |
| type of drive | High precision servo stepping motor | |
| Visual positioning system | High-pixel industrial cameras are standard. | |
| Visual resolution | 0.01*0.01mm/Pixel(adjustable) | |
| Recognition range | 14*14mm | |
| Motion interpolation function | Any route in 3D space can be used. | |
| Working environment humidity | 5-40°C/20-90% | |
| outline dimension | L590*W520*H660mm / about 55KG | |
