1. Small body and rich applications;
2. Adopt high-precision servo motor+grinding ball screw, with higher precision and richer expansion and application;
3. Rich product types and optional itinerary to meet the app lication of different products;
4. It can be equipped with pneumatic controller or injection valve with independent core to realize high-precision and stable ejection of fluid and precise control of trajectory in a non-contact way;

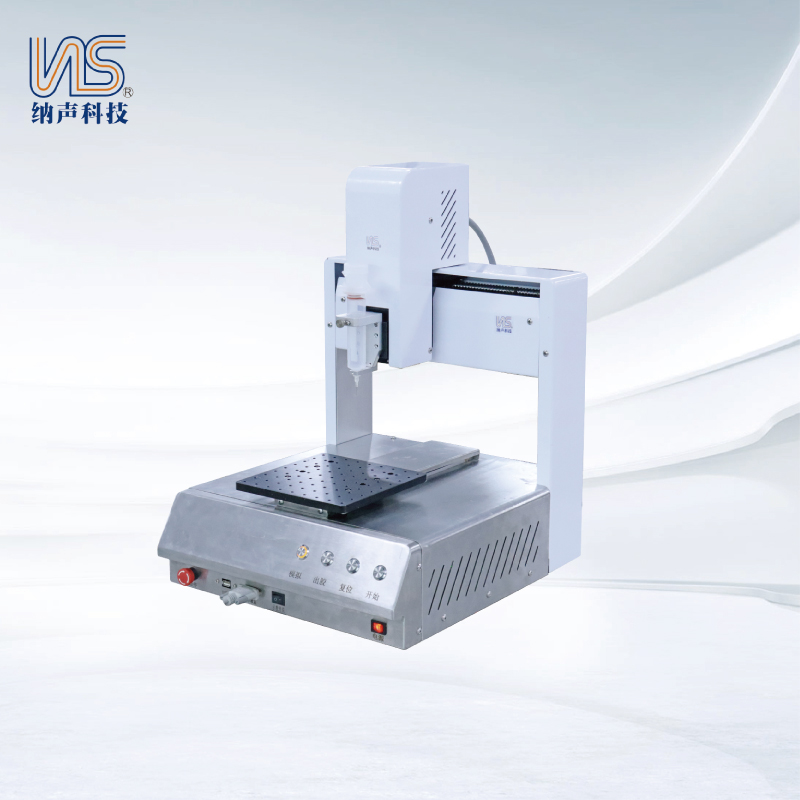

product model：NS.SP.920H/930H
Platform moving speed type：X/Y axis: 0.1-500mm/s, Z axis: 300mm/s
Range of motion stroke：(X) 200*(Y) 200* (Z) 100mm (line customizable)
repeatability：±0.01mm
Memory storage：Super-capacity high-speed file storage, which can store 999 files with 56,000 points each (supporting U disk COPY).
1/0Newsl：4nputs
Memory storage：AC110V/220V/50-60HZ
Power: 500W
type of drive：High precision servo stepping motor
Motion interpolation function：Any route in 3D space can be used.
Working environment humidity：5-40°C/20-90%
outline dimension：L645*W 625*H700mm / about 45KG
