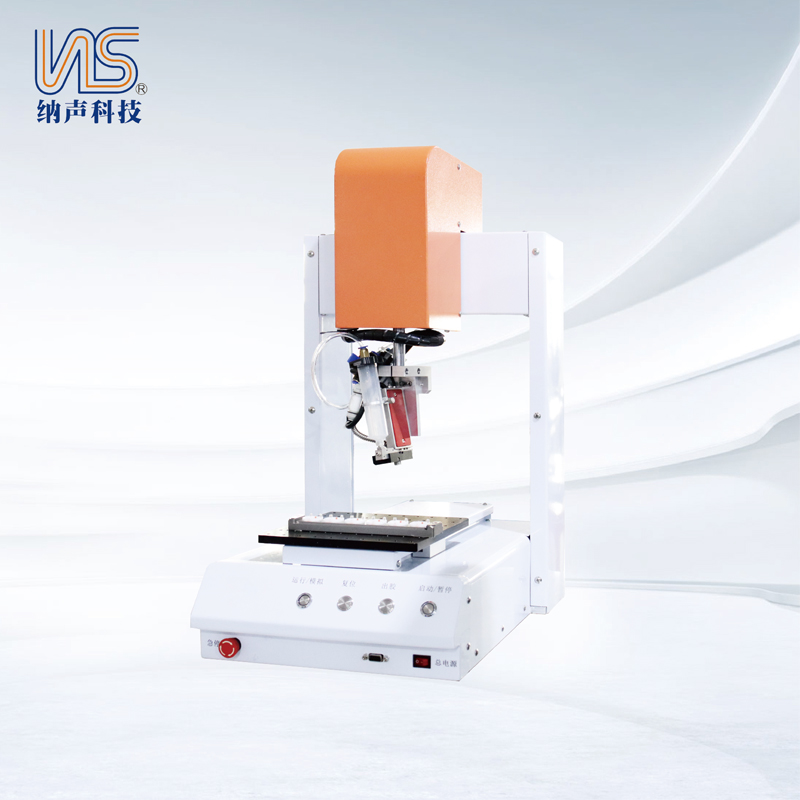

1. Simple and convenient operation, high speed and accuracy. (1 times higher than that of simil ar products);
2. Realize the online debugging function with PC, and realize the non-planar 3D path by grap hical WYSIWYG programming;
3. A comprehensive dispensing process solution , including the functions of closing the glue in advance, opening the glue later, lifting at an oblique position, ment, setting the number of closed graphics laps, etc.
Platform moving speed type:X/Y axis: 0.1-500mm/s, Z axis: 300mm/s
Range of motion stroke:(X)200*(Y)250*(Z)80mm
repeatability:±0.01mm
Memory storage:Super-capacity high-speed file storage, which can store 999 files with 56,000 points each (supporting U disk COPY).
1/0Newsl:4nputs
Input power supply:AC110V/220V/50-60HZ power 150W
type of drive:Japanese micro-stepping precision motor/high precision motor system (servo system can be selected)
Motion interpolation function:Any route in 3D space can be used.
Working environment humidity:5-40°C/20-90%
outline dimension:L370*W495*668mm 50KG
