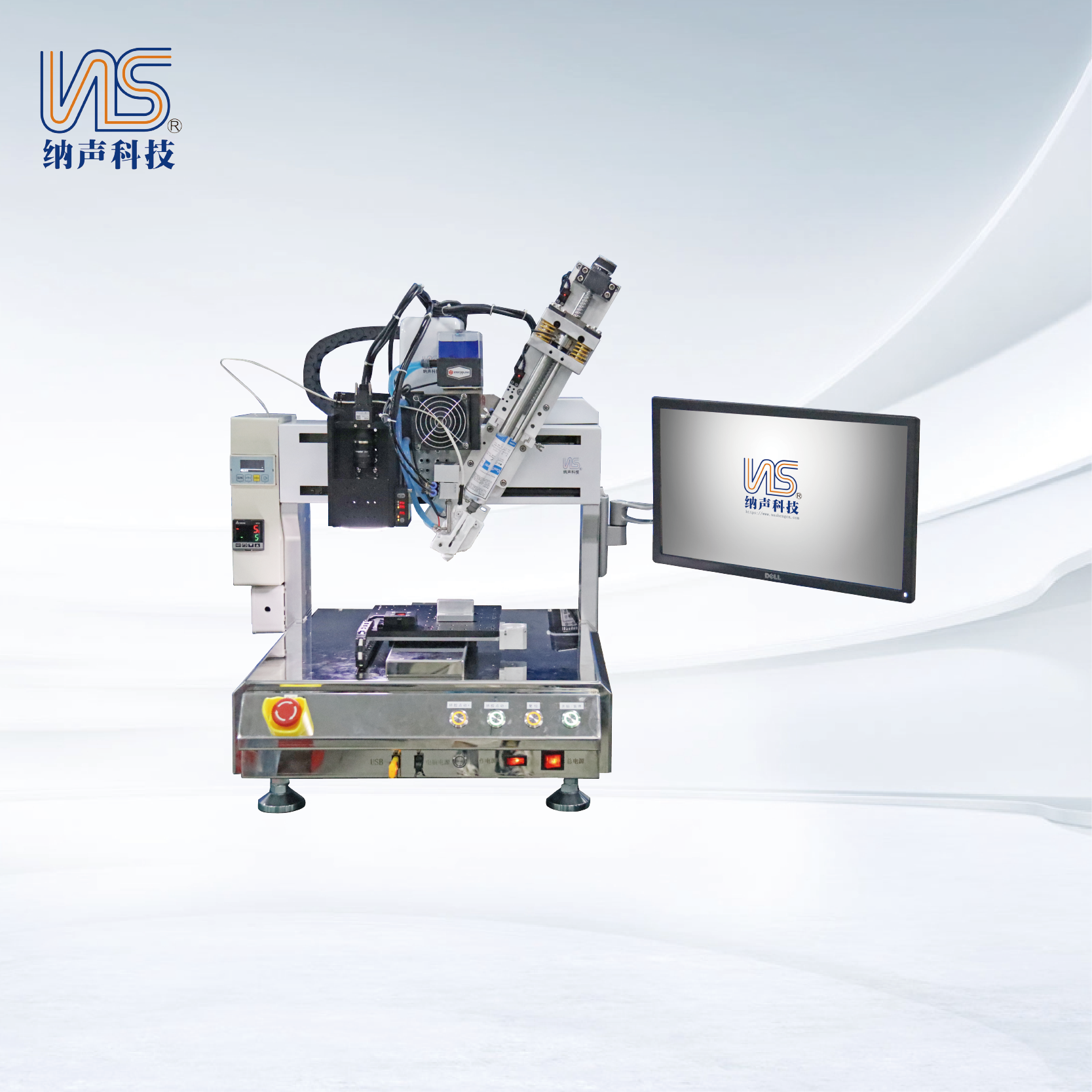

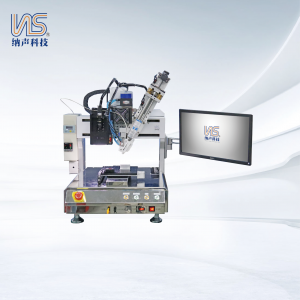

High Precision Three-Axis Screw Dispensing Machine-High Speed Version

1. Stainless steel shell, meeting the requirements of cleanliness;

2. Intelligent vision dispensing system, which coordinates with MARK to take photos, position and correct dispensing trajectory in real time, and guide dispensing;

3. Equipped with injection valve function module and non-contact dispensing to realize smaller dispensing diameter, and can also be equipped with other dispensing fields;

4. Comprehensive dispensing process solution, including the functions of closing the glue in advance, opening the glue later, coming to the stage obliquely, changing speed during movement, setting the number of closed graphics laps, etc.

Inquire Now

Description

product model：NS.SP.930HHE

Technical parameters：
Range of motion	(X/Y/Z axis) 300/300/100mm
maximum load	(Y/Z axis) 20Kg／15Kg (maximum speed cannot be maximum load)
rate of travel	(XY axis) 0.1-800mm/s (Z axis) 01-300mm/s
repeatability	±0.01mm
Storage memory	64G ultra-large capacity high-speed fixed disk file storage (120G can be customized)
type of drive	High precision motor system (optional servo system)
Transmission mode	Precision screw module
Visual positioning system	High-pixel industrial cameras are standard.
Visual resolution	0.01*0.01mm/Pixel(adjustable)
Programming mode	Keymouse+display
Recognition range	14*14mm
Input power supply	AC110V/220V (internal switching) 50-60HZ/power: 1500W
Working environment humidity	5-40°C/20-90%
outline dimension	L590W520H660mm / about 55KG

Extended series application

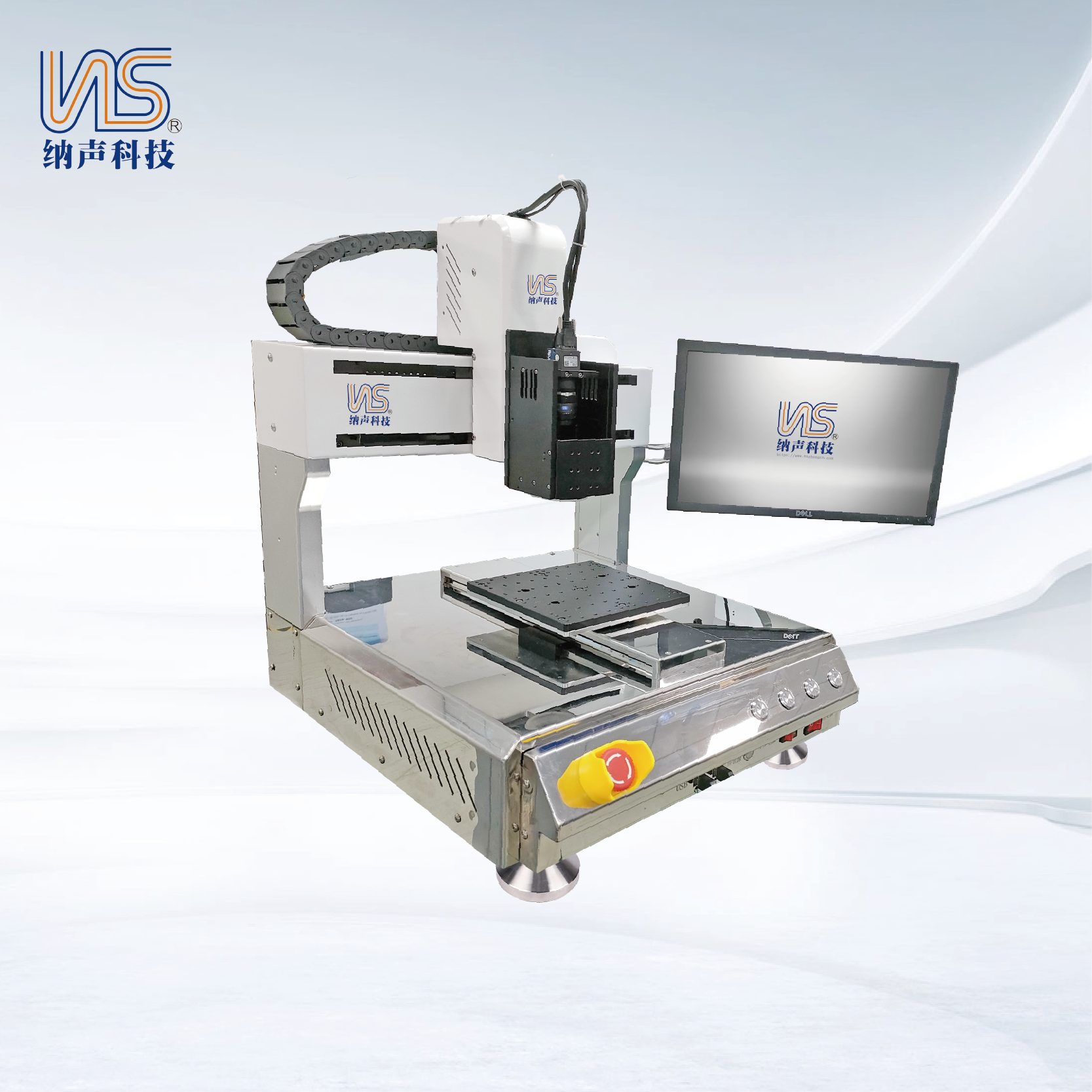

product name：Servo glue pressing

Product features：

1. countdown to dispensing, height measurement function and automatic needle cleaning;

2. Digital display of cooling constant temperature, display of extrusion pressure and alarm;

3. Have a glue protective sleeve to prevent people from being injured by tube and give an alarm signal of glue squeezing pressure;

4. Using an intelligent vision dispensing system, MARK takes photos to position and correct the dispensing trajectory in real time and guide the dispensing;

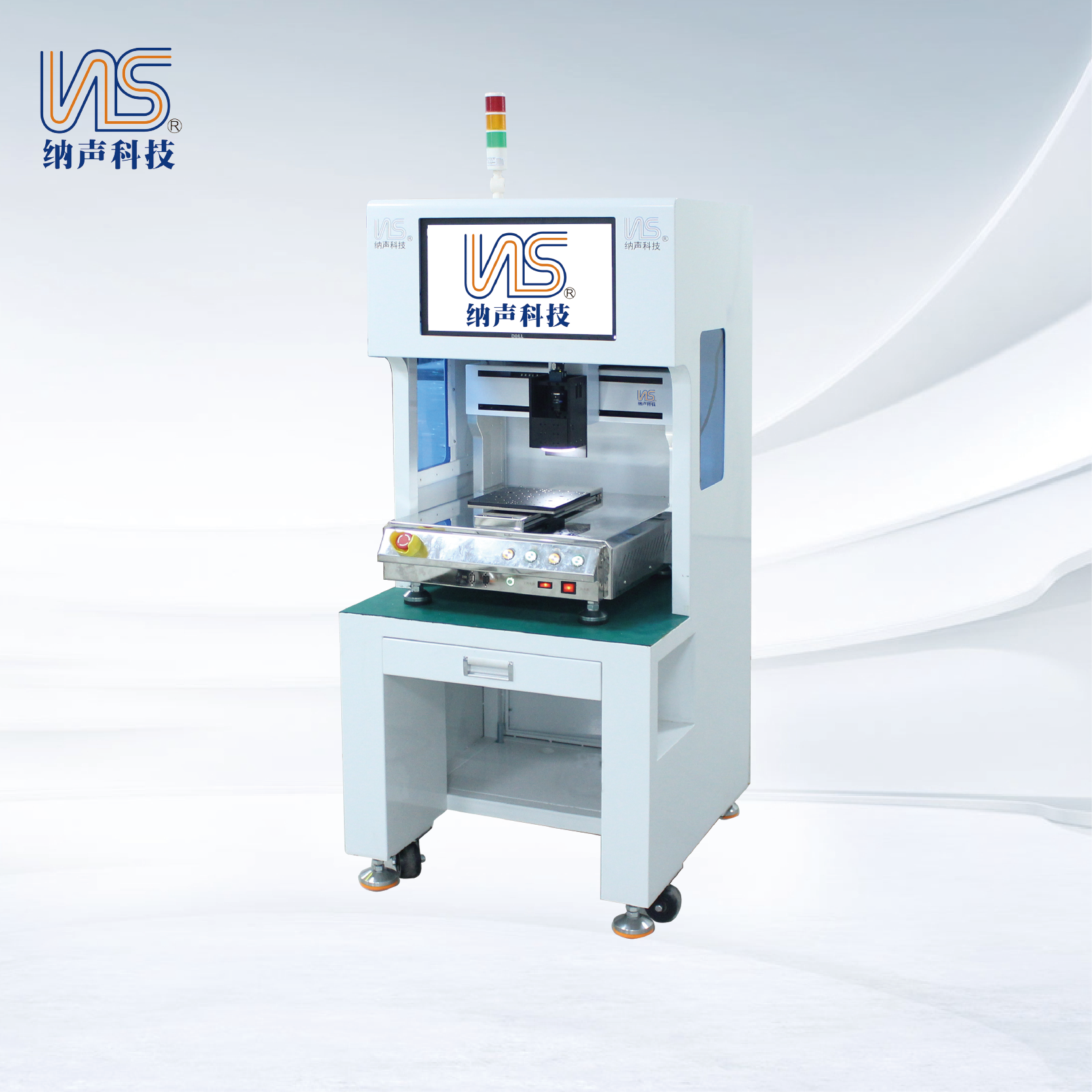

product name：semienclosed

Product features：

1. Automatically and quickly capture Mark positioning, search and identify product contours, and automatically correct and compensate to ensure accurate dispensing position;

2. The travel, movement speed and acceleration of each axis can be customized as required;

3. Equipped with injection valve/screw valve function module, non-contact dispensing, valve modes, and wider application fields;

4. The servo motor and grinding screw module are adopted to ensure the high precision, high speed, high efficiency and high consistency of the system, and the repeated positioning accuracy of the platform can reach 0.01mm;
