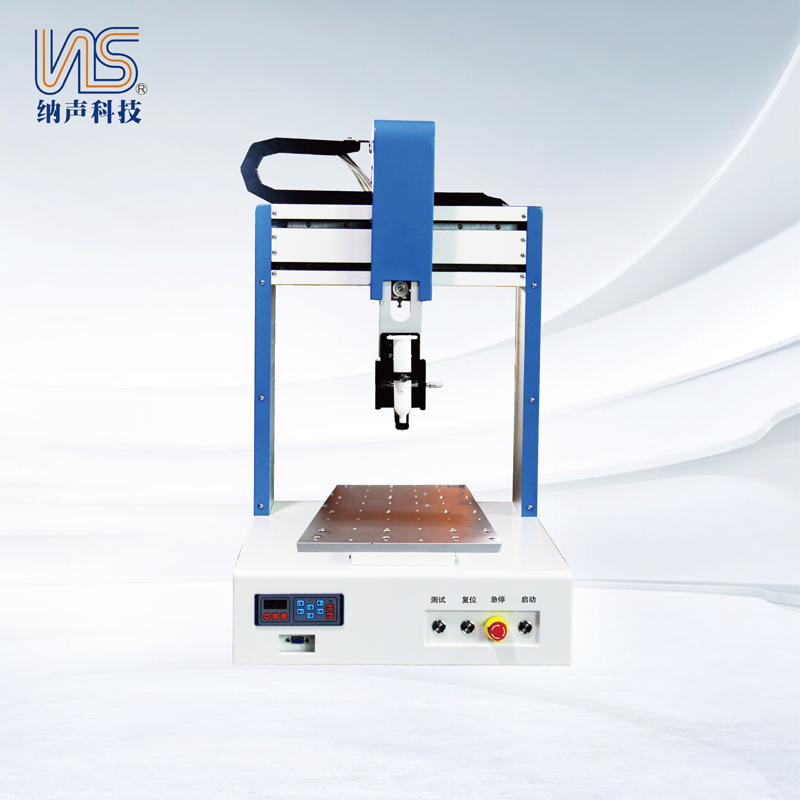

1. Suitable for large-size products, three-dimensional correction, and arbitrary realization of non-planar 3D paths;
2. Simple and convenient operation, high speed and accuracy. (1 times higher than that of similar product s);
3. A comprehensive dispensing process solution, inc luding the functions of closing the glue in advance, opening the glue later, lifting at an oblique position, changing speed during movement, setting the num ber of closed graphics laps, etc.
Platform moving speed type:X/Y axis: 0.1-500mm/s, Z axis: 200mm/s
Range of motion stroke:(X)300*(Y)300*(Z)100mm(stroke can be customized)
repeatability:±0.01mm
Memory storage:Super-capacity high-speed file storage, which can store 999 files with 56,000 points each (supporting U disk COPY).
1/0Newsl:4nputs
Input power supply:AC110V/220V/50-60HZ power 150W
type of drive:Japanese micro-stepping precision motor/high precision motor system (servo system can be selected)
Motion interpolation function:Any route in 3D space can be used.
Working environment humidity:5-40°C/20-90%
outline dimension:L513*W 484*H605mm 35KG
