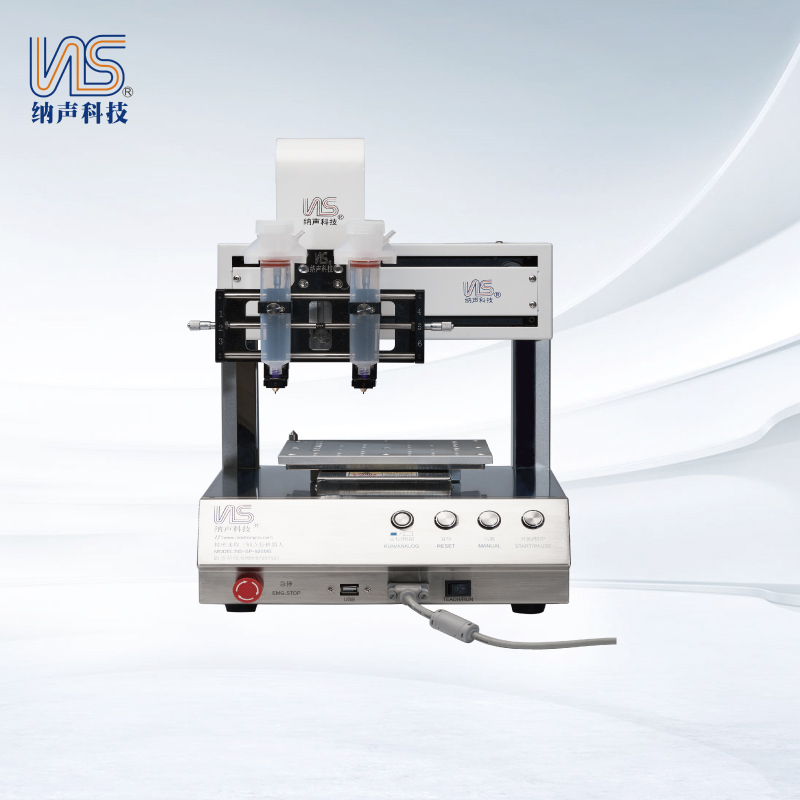

1. Simple and convenient operation, high speed and accura cy. (1 times higher than that of similar products);
2. Small size, high space utilization rate, realizing the functio n of small body and big body;
3. It can be equipped with a multi-connected dispensing unit;
4. A comprehensive dispensing process solution, including the functions of closing the glue in advance, opening the glue later, lifting at an oblique position, setting the number of clo sed graphics with variable speed during movement, etc.
Platform moving speed type：X/Y axis: 0.1-500mm/s, Z axis: 300mm/s
Range of motion stroke：(X) 200*(Y) 200* (Z) 80mm (line customizable)
repeatability：±0.01mm
Memory storage：Super-capacity high-speed file storage, which can store 999 files with 56,000 points each (supporting U disk COPY).
1/0Newsl：4nputs
Input power supply：AC110V/220V/50-60HZ power 150W
type of drive：Japanese micro-stepping precision motor/high precision motor system (servo system can be selected)
Motion interpolation function：Any route in 3D space can be used.
Working environment humidity：5-40°C/20-90%
outline dimension：L385*W300*H468mm /28KG
