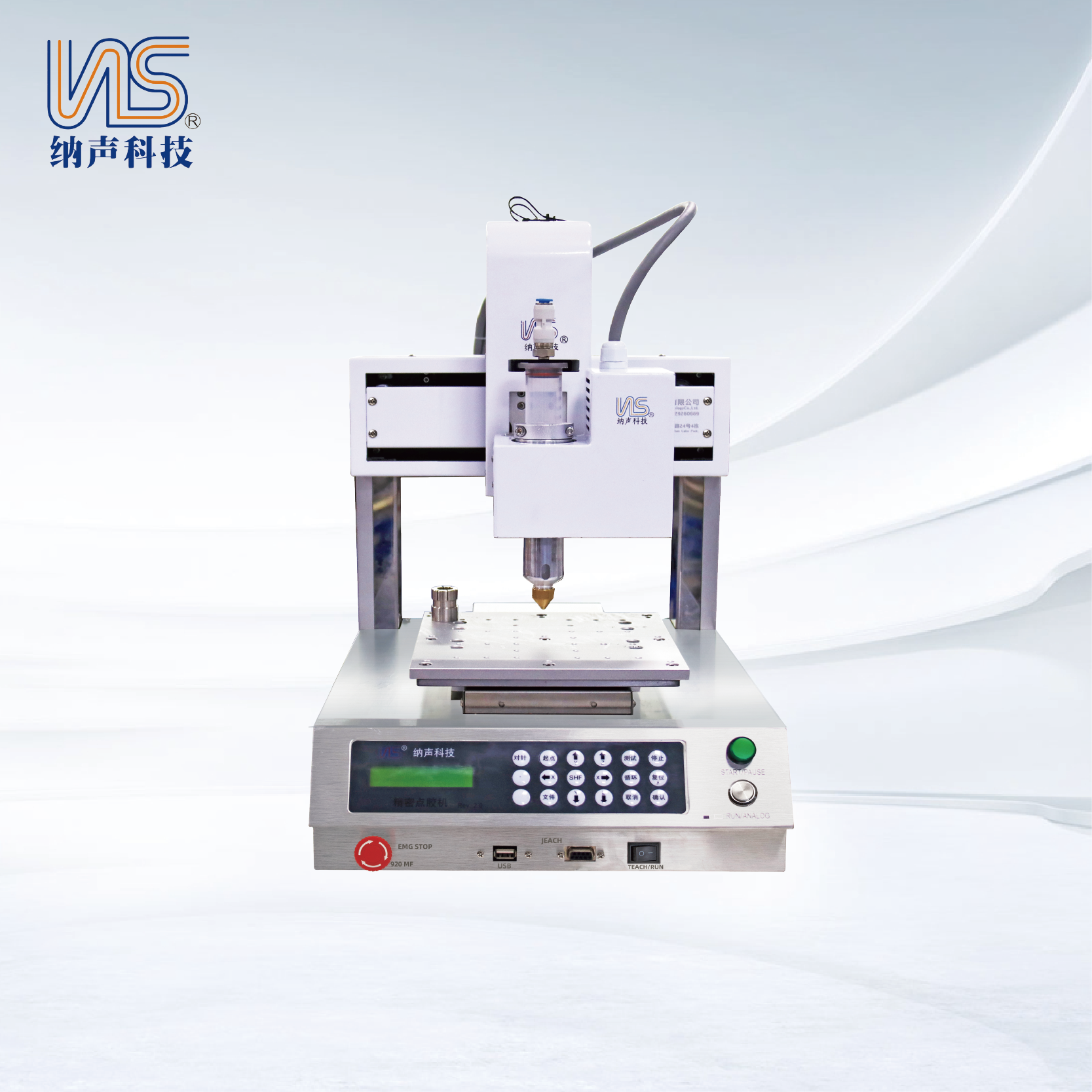

1. An additional shaft is added on the basis of three shafts, so that the glue dispensing angle on the vertical surface can be manually adjusted,covering the right-angle dead angle, to glue 90-degree right-angle side edges;
2. Small size, high space utilization rate, realizing the of small .
3. Simple and convenient operation, accuracy. (1 times higher than that of similar products);
4. A comprehensive dispensing process solution, functionsof closing the glue in advance, opening the glue later, lifting at an position, setting the number of closed graphics during movement, etc.
Platform moving speed type：X/Y axis: 0.1-500mm/s, Z axis: 300mm/s
Range of motion stroke：(X) 200* (Y) 200* (2) 80mmW2-360°(The itinerary can be customized)
repeatability：±0.01mm
Memory storage：Super-capacity high-speed file storage, which can store 999 files with 56,000 points each (supporting U disk COPY).
1/0Newsl：4nputs
Input power supply：AC110V/220V/50-60HZ power 150W
type of drive：Japanese micro-stepping precision motor/high precision motor system (servo system can be selected)
Motion interpolation function：Any route in 3D space can be used.
Working environment humidity：5-40°C/20-90%
outline dimension：L385*W300*H468mm /30KG
