1. Any non-planar 3D point path can be realized by using trapezoidal acceleration and deceleration , speed foresight and micro-line interpolation.
2. Realize the graphical WYSIWYG programming mode of online debugging with pc;

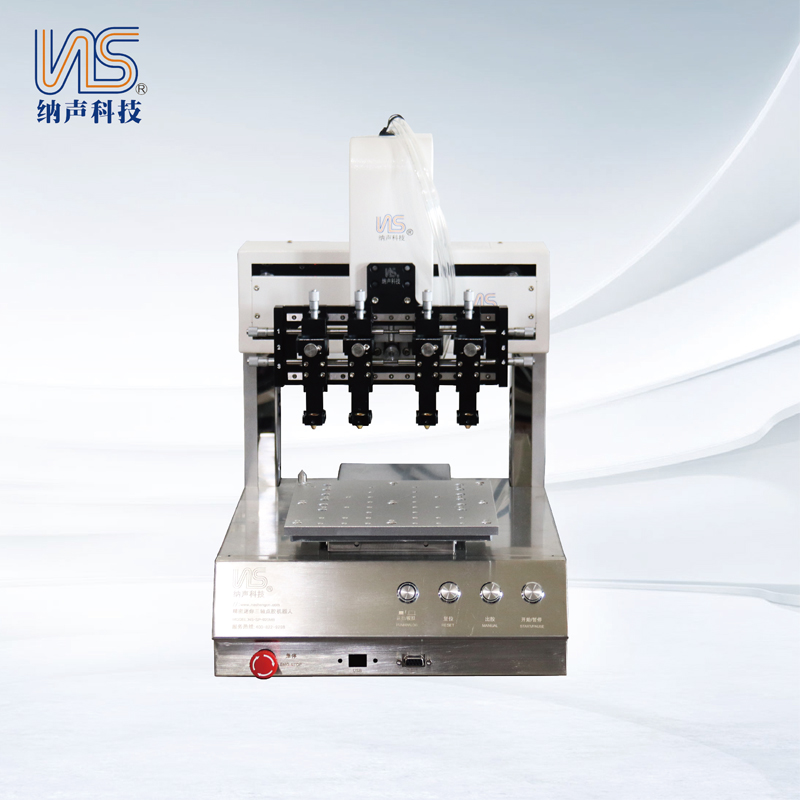

3. It is equipped with some glue and vacuum sucti on/blowing function, which is especially suitable for glue coating and product handling of mobile phone speakers, receivers, cameras and other products;
4. 6-way/8-way syringe adjusting frame, 2-way hotbar or piezoelectric valve adjusting frame can be provided.
Platform moving speed type:X/Y axis: X/Y axis: 0.1-800mm/s, Z axis: 500mm/s
Range of motion stroke:(X)200*(Y)200*(Z)80mm
repeatability:±0.01mm
Memory storage:Super-capacity high-speed file storage, which can store 999 files with 56,000 points each (supporting U disk COPY).
1/0Newsl:8 outputs, 8 inputs (expandable)
Input power supply:AC110V/220V/50-60HZ power: 350W
type of drive:Japanese micro-stepping precision motor, Z-axis ball screw
Motion interpolation function:Any route in 3D space can be used.
Working environment humidity:5-40°C/20-90%
outline dimension:L 385*W 300*H520mm 35KG
